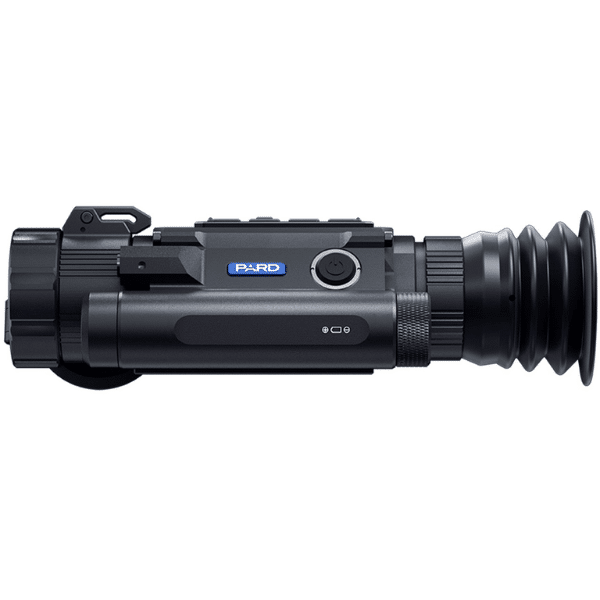

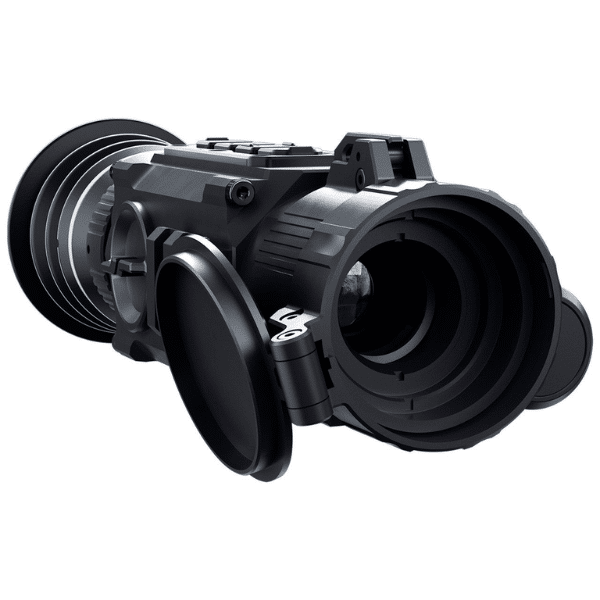

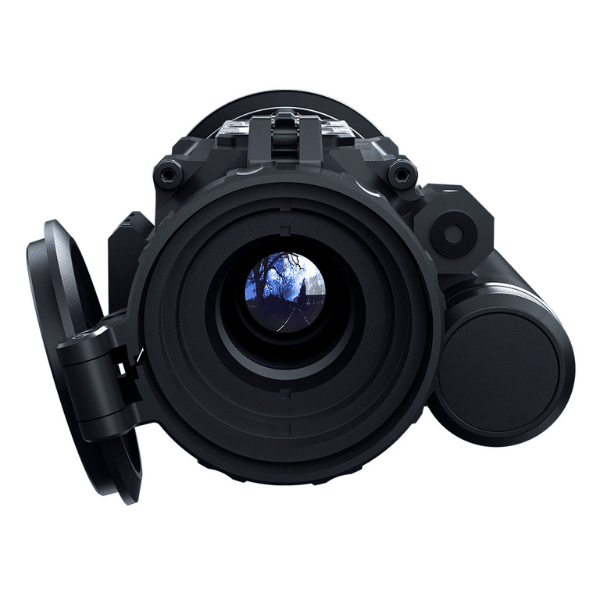

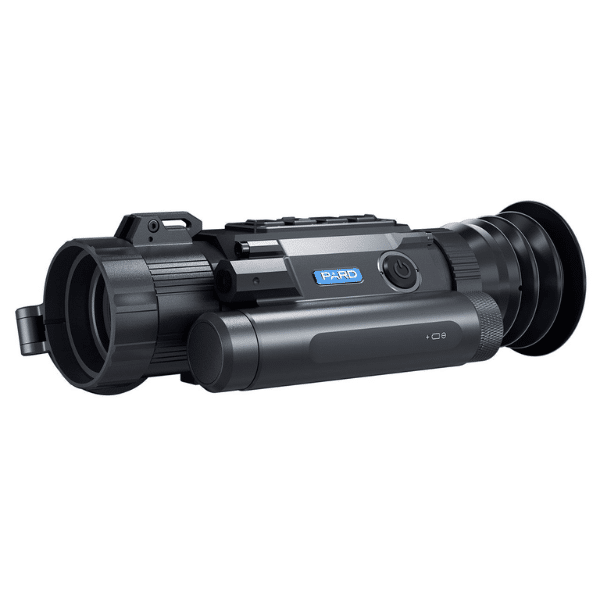

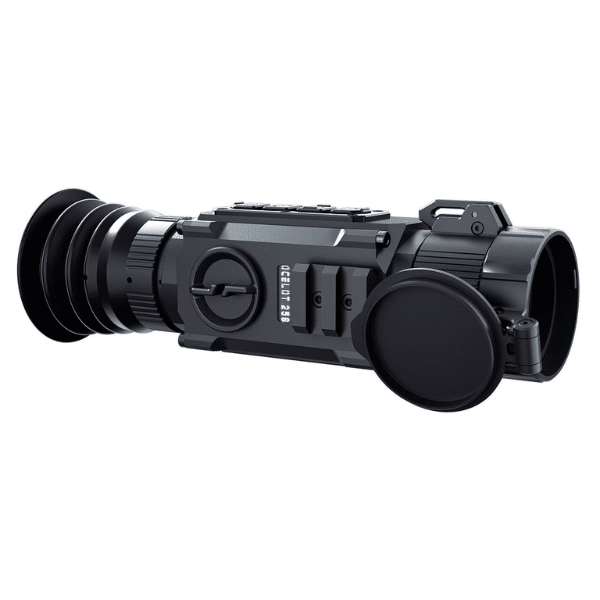

Pard Ocelot 256 Mini Thermal Imaging Scope OC2-19
R15,750.00
The Pard Ocelot 256 Mini Thermal Imaging Scope OC2-19 offers a compact and ergonomic design, weighing just 14.8 ounces and measuring 182 × 68 × 79mm for easy handling in the field. Equipped with a high-sensitivity sensor (NETD ≤ 25mK), it delivers clear thermal images even in low-contrast environments. The variable magnification ranges from 3.2x to 25.6x, providing flexibility for both close-up observation and long-range spotting.
Features:
- Ultra-Compact and Lightweight Design: Weighing just 14.8oz and measuring 182x68x79mm, this device is an ultra-compact design for easy carry. Perfect for field missions or mobile tasks, it minimises bulk without sacrificing functionality—ideal when space and efficiency are important.
- Crystal-Clear Thermal Imaging: Featuring a high-sensitivity sensor with NETD ≤ 25mK, the device delivers exceptionally sharp thermal images. It detects even the slightest temperature changes, providing enhanced clarity and detail—crucial for identifying targets, tracking movement, and making accurate decisions in challenging visual conditions.
- Flexible Magnification Range: With 3.2x to 25.6x variable magnification, this device adapts seamlessly to various observation distances. Whether scanning wide terrain or zooming in for close-up detail, users enjoy smooth transitions and precise focus—ideal for target identification.

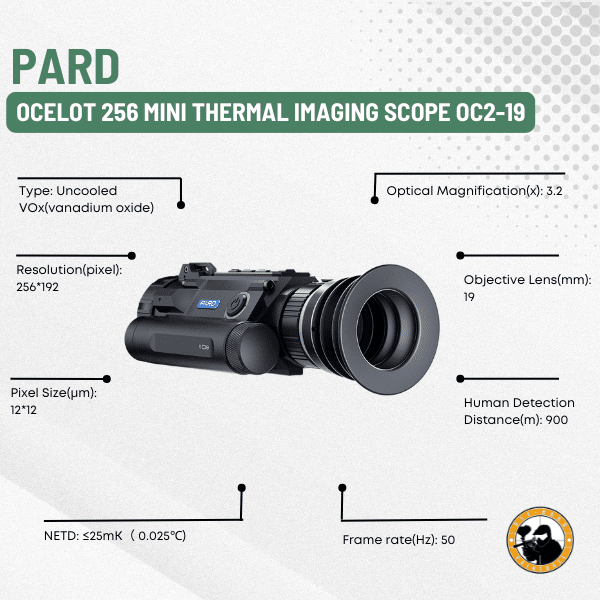

Specifications:
- Type: Uncooled VOx(vanadium oxide)
- Resolution(pixel): 256*192
- Pixel Size(µm): 12*12
- NETD: ≤25mK（ 0.025℃)
- Frame rate(Hz): 50
- Human Detection Distance(m): 900
- Objective Lens(mm): 19
- Optical Magnification(x): 3.2
- Digital Zoom(x): 2/4/6/8
- Field of View (Horizontal): 9.2°
- Field of View (Vertical): 6.9°
- Field of View (Diagonal): 11.5°
- Focus range: 3m-∞
- Diopter adjustment(D): -5~5
- Eye Relief(mm): 30
- Type: OLED
- Resolution(pixel): 1024*768
- Reticle Style: 5
- Reticle Color: 4(Red/White/Yellow/Green)
- Scene Mode: City/Rain/Forest
- Image Mode: WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
- Photo resolution(pixel): 1024*768
- Photo Format: .JPG
- Video Resolution(pixel): 1024*768
- Video Format: .mp4
- Image Engine: Pard IREA
- PIP: Yes
- Gyroscope: Yes
- Loop Recording: Yes
- E-compass: Yes
- Storage(GB): Built-in EMMC (32 GB)
- Shutter: Mechanical shutter
- Microphone: Yes
- Firmware Upgrade: Yes
- USB Type-C: Yes
- WiFi: Yes
- Supported Apps: PardVision2
- Battery Type: Lithium Ion 18650
- Output Voltage(V): 3.7
- Operating Time(h): ≤5
- External Power Supply: Type-C
- Protective Class: IP67
- Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
- Housing: Aluminium Alloy
- Objective Lens: All-glass multi-coated lens
- Product Dimension(with LRF, L * W * H, mm): 180*65*40
- N.W/pcs(with LRF&battery, g): 420
View all our Scopes here
Manufacturer: website
| Brand | Pard |
|---|---|
| Colour | Black |
| Pixel Size(µm) | 12*12 |
| NETD | ≤25mK（ 0.025℃) |
| Frame rate(Hz) | 50 |
| Human Detection Distance(m) | 900 |
| Digital Zoom(x) | 2/4/6/8 |
| Field of View (Horizontal) | 9.2° |
| Field of View (Vertical) | 6.9° |
| Field of View (Diagonal) | 11.5° |
| Focus range | 3m-∞ |
| Diopter adjustment(D) | -5~5 |
| Type | OLED |
| Resolution(pixel) | 1024*768 |
| Reticle Style | 5 |
| Reticle Colour | 4(Red/White/Yellow/Green) |
| Scene Mode | City/Rain/Forest |
| Image Mode | WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY |
| Photo resolution(pixel) | 1024*768 |
| Photo Format | .JPG |
| Video Resolution(pixel) | 1024*768 |
| Video Format | .mp4 |
| Image Engine | Pard IREA |
| PIP | Yes |
| Gyroscope | Yes |
| Loop recording | Yes |
| E-compass | Yes |
| Storage(GB) | Built-in EMMC (32 GB) |
| Shutter | Mechanical shutter |
| Microphone | Yes |
| Firmware Upgrade | Yes |
| USB Type-C | Yes |
| WiFi | Yes |
| Supported Apps | PardVision2 |
| Battery type | Lithium Ion 18650 |
| Output voltage(V) | 3.7 |
| Operating time(h,max) | ≤5 |
| External power supply(V) | Type-C |
| Operating temp(°C/°F) | -30 ~ +55 / -22 ~ +131 |
| Protective Class | IP67 |
| Magnification | 3.2× optical, 2× / 4× / 6× / 8× digital zoom |
| Lens Coating | All-glass multi-coated objective lens |
| Reticle Type | 5 selectable reticle styles with 4 reticle colours (Red, White, Yellow, Green) |
| Ocular Lens Diameter | N/A |
| Objective Lens Diameter | 19 mm |
| Exterior Finish | Matte black aluminium alloy housing |
| Mounting Length | N/A |
| Field of View (100 yards) | Approximately 16.1 yards horizontal (9.2° horizontal FOV; equivalent to approximately 16.1 m at 100 m) |
| Exit Pupil | Not applicable (OLED digital display) |
| Eye Relief | 30 mm |
| Adjustment Click Value | Not specified (digital zeroing system) |
| Max. elevation adjustment range (MOA) | N/A |
| Max. windage adjustment range (MOA) | N/A |
| Focal Plane | Not applicable (digital reticle) |
| Shockproof | Yes |
| Waterproof | Yes – IP67 rated |
| Parallax Correction (yds) | Adjustable focus from 3.3 yards (3 m) to infinity |
| Illumination | None (thermal imaging device; no IR illuminator required) |
| Weight | 420 g (including battery) |
| Length | 180 mm (overall dimensions: 180 × 65 × 40 mm) |
