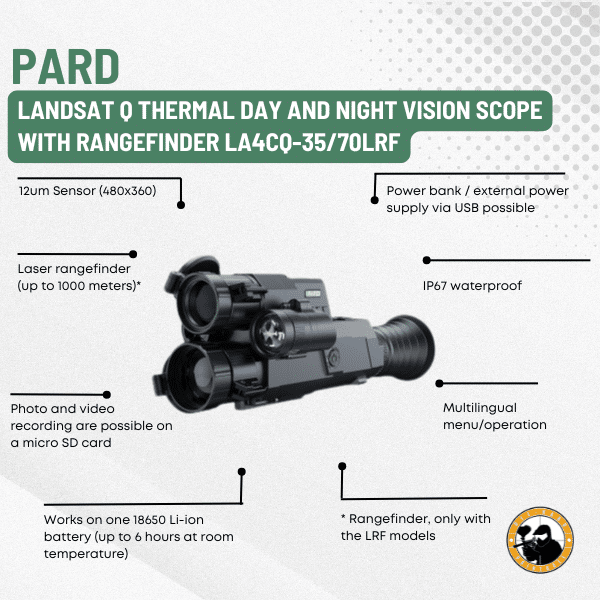

Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA4CQ-35/70LRF
R52,500.00
Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA4CQ-35/70LRF – The revolutionary PARD Landsat multi-spectral riflescope integrates three image modes – thermal, night, and day vision – in a single scope, with the option of a picture-in-picture mode that combines night vision and thermal imaging into a single image.
The PARD Landsat Compact Q 480 is equipped with a 480×360 12um thermal sensor for greater magnification and observation distance, and a 2560×1400 CMOS night vision sensor. The Landsat is IP67 waterproof.
Features:
- 12 µm Sensor (480×360)
- Laser rangefinder (up to 1000 meters)*
- Photo and video recording are possible on a micro SD card
- Works on one 18650 Li-ion battery (up to 6 hours at room temperature)
- Power bank / external power supply via USB is possible
- IP67 waterproof
- Multilingual menu/operation
- * Rangefinder, only with the LRF models
Specifications of the Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA4CQ-35/70LRF:
- Thermal Sensor
- Type Uncooled Vox (vanadium oxide)
- Resolution(pixel) 480*360
- Pixel Size(µm) 12*12
- NETD ≤18mK（0.02℃）
- Frame rate (Hz) 50
- Detection Distance(m) 2100
- Image Engine PARD IREA
- Objective lens (mm) 35
- Optical Magnification(x) 2.5
- Digital Zoom(x) 2/4/6/8
- Field of View (Horizontal) 7.1°
- Field of View (Vertical) 7.1°
- Field of View (Diagonal) 10.0°
- Focus range 3m-∞
- Visible Light Sensor
- Resolution(pixel) 2560*1440
- Pixel Size(µm) 2.9
- Sensitivity (lux) 0.001
- Frame rate (Hz) Colour mode: 60 / Mono: 30
- Image Engine PARD VLEA
- Objective Lens (mm) 70
- Optical Magnification(x) 6.1
- Digital Zoom(x) 2
- Field of View (Horizontal) 4.8°/3.4°
- Field of View (Vertical) 4.8°/3.4°
- Field of View (Diagonal) 6.8°/4.8°
- Focus range 3m-∞
- Display
- Type OLED
- Resolution(pixel) 1600*1200
- Reticle Style 6
- Reticle Colour 4 (Red/White/Yellow/Green)
- Scene Mode City/Rain/Forest
- Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- Eye Relief(mm) 100
- Diopter Adjustment(D) -5~+3
- Photo / Video
- Photo resolution (pixel) 1536*1536
- Photo Format .JPG
- Video Resolution(pixel) Thermal: 768*768/Night Vision: 1440*1080
- Video Format .mp4
- Storage(GB) Micro SD card (Max. 128)
- Main function
- LRF Detection Range (yd/m) 1200/1000
- Ballistic Calculator Yes
- PIP Yes
- Gyroscope Yes
- Loop Recording Yes
- Recoil-activated recording Yes
- E-compass Yes
- Shutter Mechanical shutter
- Microphone Yes
- Firmware Upgrade Yes
- IR Illuminator
- IR power(W) 5
- IR illuminating level 3 Levels
- IR distance(m) 350
- IR Wavelength (nm) 850/940
- Interfaces
- USB Type-C Yes
- HDMI Output Yes
- Connections
- WiFi Yes
- Supported Apps PardVision2
- Power Supply
- Battery Type Li-ion 21700*1
- Output Voltage(V) 3.7
- Operating Time(h) ≤6
- External Power Supply Type Type-C
- Environmental characteristic
- Degree of Protection IP67
- Operating Temp(°C/°F) -30 ~ +55 / -22 ~ +131
- Recoil Resistance(J) 6000
- Material
- Housing Aluminum Alloy
- Objective lens: All-glass multi-coated lens
- Measurement
- Product dimension(L x W x H, mm) 265*92*90
- NW/pcs(with IR illuminator&LRF&battery, g) 750
What’s in the box:
- 1x PARD Landsat Compact Q 480 35/70mm multi-spectral scope
- 1x rechargeable 18650 Li-ion battery
- 1x Battery charger
- 1x 32GB micro-SD card
- 1x USB cable
- 1x protective bag
- 1x Warranty card and manual
View all our Scopes here
Manufacturer: website
| Brand | Pard |
|---|---|
| Colour | Black |
| Thermal Sensor | Type Uncooled Vox (vanadium oxide) Resolution(pixel) 480*360 Pixel Size(µm) 12*12 NETD ≤18mK（0.02℃） Frame rate (Hz) 50 Detection Distance(m) 2100 Image Engine PARD IREA Objective lens (mm) 35 Optical Magnification(x) 2.5 Digital Zoom(x) 2/4/6/8 Field of View (Horizontal) 7.1° Field of View (Vertical) 7.1° Field of View (Diagonal) 10.0° Focus range 3m-∞ |
| Visible Light Sensor | Resolution(pixel) 2560*1440 Pixel Size(µm) 2.9 Sensitivity (lux) 0.001 Frame rate (Hz) Colour mode: 60 / Mono: 30 Image Engine PARD VLEA Objective Lens (mm) 70 Optical Magnification(x) 6.1 Digital Zoom(x) 2 Field of View (Horizontal) 4.8°/3.4° Field of View (Vertical) 4.8°/3.4° Field of View (Diagonal) 6.8°/4.8° Focus range 3m-∞ |
| Display | Type OLED Resolution(pixel) 1600*1200 Reticle Style 6 Reticle Colour 4 (Red/White/Yellow/Green) Scene Mode City/Rain/Forest Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY Eye Relief(mm) 100 Diopter Adjustment(D) -5~+3 |
| Digital magnification | Photo / Video Photo resolution (pixel) 1536*1536 Photo Format .JPG Video Resolution(pixel) Thermal: 768*768/Night Vision: 1440*1080 Video Format .mp4 Storage(GB) Micro SD card (Max. 128) |
| Main function | LRF Detection Range (yd/m) 1200/1000 Ballistic Calculator Yes PIP Yes Gyroscope Yes Loop Recording Yes Recoil-activated recording Yes E-compass Yes Shutter Mechanical shutter Microphone Yes Firmware Upgrade Yes |
| IR Illuminator | IR power(W) 5 IR illuminating level 3 Levels IR distance(m) 350 IR Wavelength (nm) 850/940 |
| Interfaces | USB Type-C Yes HDMI Output Yes |
| Connections | WiFi Yes Supported Apps PardVision2 |
| Power Supply | Battery Type Li-ion 21700*1 Output Voltage(V) 3.7 Operating Time(h) ≤6 External Power Supply Type Type-C |
| Environmental characteristic | Degree of Protection IP67 Operating Temp(°C/°F) -30 ~ +55 / -22 ~ +131 Recoil Resistance(J) 6000 |
| Material | Housing Aluminum Alloy Objective lens: All-glass multi-coated lens |
| Measurement | Product dimension(L x W x H, mm) 265*92*90 NW/pcs(with IR illuminator&LRF&battery, g) 750 |
| What's in the box | 1x PARD Landsat Compact Q 480 35/70mm multi-spectral scope 1x rechargeable 18650 Li-ion battery 1x Battery charger 1x 32GB micro-SD card 1x USB cable 1x protective bag 1x Warranty card and manual |
| Magnification | 2.5× (thermal) / 4.4× or 6.1× (day & night vision, depending on 50 mm or 70 mm visible objective); 2× / 4× / 6× / 8× digital zoom (thermal); 2× digital zoom (visible) |
| Lens Coating | All-glass multi-coated objective lens |
| Reticle Type | 6 selectable digital reticle styles with 4 reticle colours (Red, White, Yellow, Green) |
| Ocular Lens Diameter | N/A |
| Objective Lens Diameter | 35 mm (thermal) / 70 mm (visible light sensor) |
| Exterior Finish | Matte black aluminium alloy housing |
| Mounting Length | N/A |
| Field of View (100 yards) | Thermal: Approximately 12.4 yards horizontal (7.1° HFOV) Day/Night: Approximately 5.9 yards horizontal (3.4° HFOV) |
| Exit Pupil | Not applicable (IPS digital display) |
| Eye Relief | 100 mm |
| Adjustment Click Value | N/A |
| Max. elevation adjustment range (MOA) | N/A |
| Max. windage adjustment range (MOA) | N/A |
| Focal Plane | Not applicable (digital reticle) |
| Shockproof | Yes – recoil rated to 6,000 J |
| Waterproof | Yes – IP67 rated |
| Parallax Correction (yds) | Adjustable focus from 3.3 yards (3 m) to infinity; diopter adjustment -5D to +3D |
| Illumination | Built-in 850 nm or 940 nm IR illuminator, 5 W, 3 brightness levels, up to 350 m illumination distance; integrated 1,000 m laser rangefinder (LRF) and ballistic calculator |
| Weight | 750 g (including IR illuminator, LRF and battery) |
| Length | 265 mm (overall dimensions: 265 × 92 × 90 mm) |
About PARD
Max Wang, the founder of PARD, has a background in optoelectronics and a passion for outdoor hunting. He has been developing optoelectronic devices since 2010 and founded Shenzhen PARD Technology Co., LTD in 2017. Over the past decade, Mr. Wang has successfully led PARD to its greatest triumphs. His innovative spirit has transformed PARD from a small team of dream chasers to a large-scale company that is paving the way to uncharted success.
In a relentless pursuit to provide excellent service, PARD has grown into a professional manufacturer of night vision and thermal imaging devices.
Their Mission:
The company's mission is to lead the global night vision and thermal imaging industry. They are dedicated to providing innovative devices for various applications, such as hunting, shooting, outdoor activities, and security operations. Their goal is to empower their customers with the latest technology for improved efficiency and effectiveness. They prioritize quality and performance, ensuring their products meet the highest standards for hunting, shooting, security, and night patrol.
Their Vision:
Their vision is to determined to become a high-tech enterprise respected by customers. They envision a win-win relationship, where they continue to provide our customers with sustainable, high-quality products through continuous innovation and they continue to grow as a brand.
Mr. Wang, who is dedicated to researching optoelectronic products, was determined to provide high-quality civilian night vision and thermal imaging devices for outdoor sports enthusiasts. To achieve this goal, he focused on developing advanced technology and design. As a result, his products have gained popularity among consumers who are passionate about outdoor activities.
In 2013, the company launched the first thermal imaging product, which hunters and outdoor sports enthusiasts favored. In 2015, they released the first-night vision device, which quickly became one of the most popular devices on the global market.
The company took an important step, in 2017, by officially registering the trademark "PARD." The following year, in 2018, they introduced their first-night vision clip-on device, the NV007, which quickly gained popularity among outdoor enthusiasts. In fact, annual sales exceeded 100,000 units, demonstrating the product's high quality and performance. Then, in 2019, the company further expanded its global presence by establishing PARD Hong Kong, which allowed them to better serve customers around the world.
2021-2022:
NV008P night vision scope won the "Night Vision Product of the Year" at the Great British Shooting Awards 2021. NV007A Night Vision clip-on Won the "Night Vision Product of the Year" at the Great British Shooting Awards 2022. The European branch and the North American branch were established in succession;
Future:
"They forge ahead with innovation using cutting-edge technology leading the way for night vision and thermal imaging devices"
