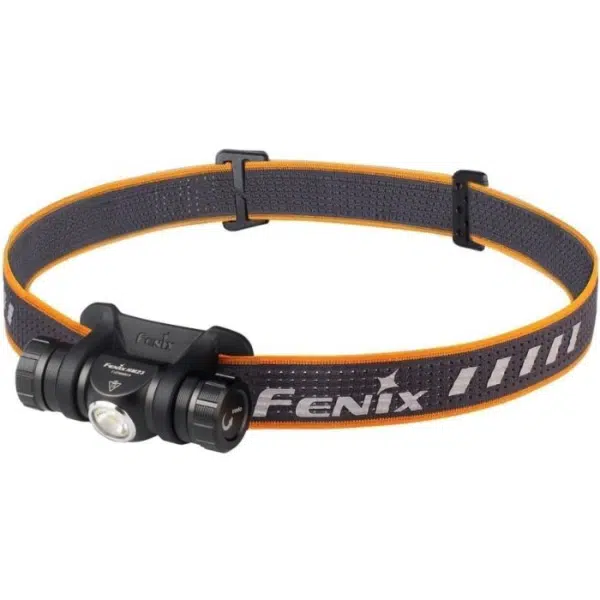

The Fenix Headlamp HM23 240 Lumens is a multi-purpose AA battery-powered headlamp that can shine a maximum of 240 lumens at a distance of 174 feet. Made from high-strength aluminium and silicone, this tough little headlamp weighs only 1.5 ounces and is waterproof and dustproof. Convenient side switch quickly controls three brightness levels of soft neutral white light. And the extremely comfortable, stay put, reflective headband plus 180 degree adjustable beam make this headlamp perfect for all kinds of activities-running, hiking, camping and climbing.

Specifications:

• Length 69.5 mm
• Width 32mm
• Height 40 mm
• Weight 43g (excluding battery)
• Battery Type One included an Alkaline AA Battery
• Included Alkaline AA battery, hollow headband, silicone holder, spare O-ring
• Lifespan 50 000hours
• Max Lumens 240
• Max Runtime 100 hours
• Material Quality: aluminium and silicone

Features:

• Cree neutral white LED
• Lifespan of 50,000 hours
• Three output levels
• Max 240 lumens
• Max 100 hours of runtime
• Digitally regulated output
• Maintains sectional constant brightness
• Reverse polarity protection to protect against improper battery insertion
• One-switch control
• Easy and fast operation
• Low-voltage warning
• Made of quality aluminium and silicone
• Tough and durable

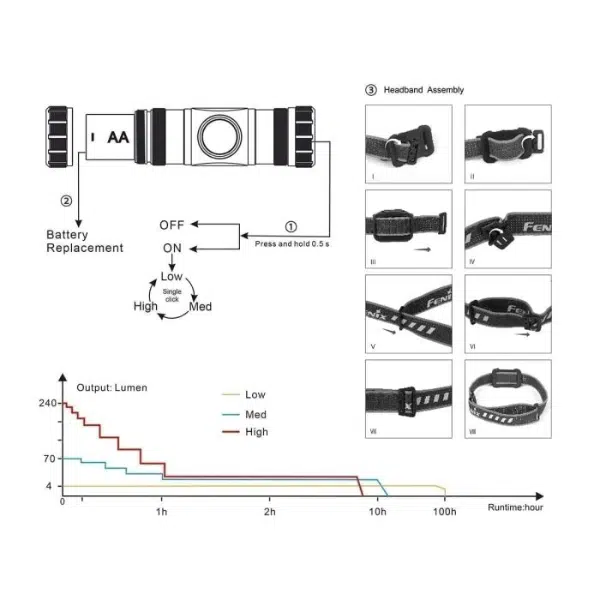

Operating Instructions for the Fenix Headlamp HM23 240 Lumens:

On/off

• Press and hold the switch for 0.5 seconds to turn on/off the light.

Output Selection

• With the lamp switched on, single-click the switch to cycle through Low, Medium, and High.
• Note: Low mode is activated by default when the lamp is turned on.

Battery Replacement

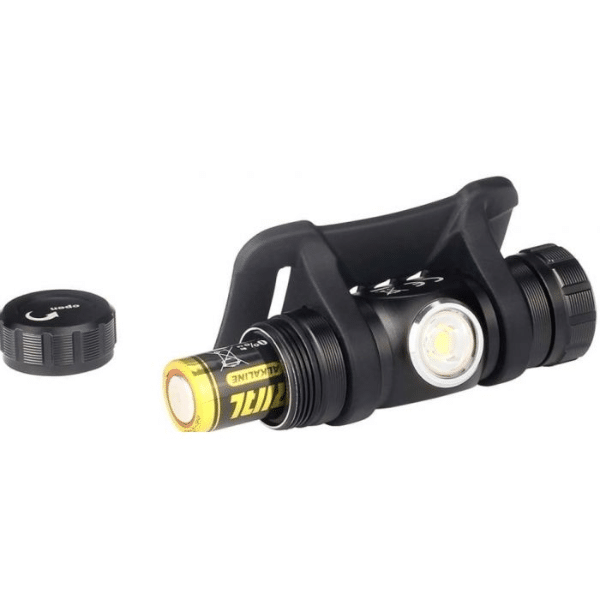

• Unscrew the battery cap to insert the battery in accordance with the polarity marks, then screw the battery cap back on.

Low Voltage Warning

• With the lamp switched on, if the voltage level drops below the preset level, the lamp is programmed to downshift to a lower brightness level until low output is reached. When this happens in low output, the lamp blinks to remind you to replace the battery. To ensure normal use, the lamp will not turn off automatically and will work until the battery level runs out.

Headband Assembly
Notice: The headband is factory assembled by default.

• Step 1: Attach the headband to the headlamp as shown (Pic -).
• Step 2: Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the lamp and will void the warranty.
• Loosen the battery cover or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare
• Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
• A: The battery needs replacing.
• Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications).
• B: The threads, PCB board contact or other contacts are dirty.
• Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don’t work, please contact your authorised distributor.

Warning

• The headlamp is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lamp directly into anyone’s eyes.
