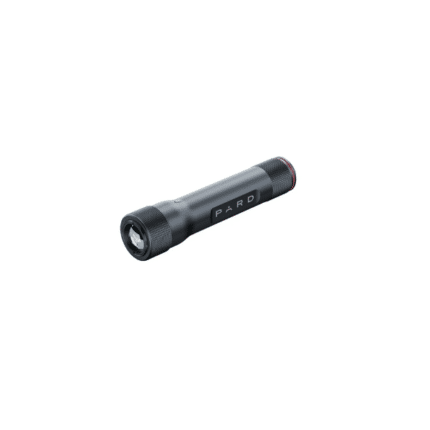

PARD | TL3 IR Torch / Illuminator | 850 nm

PARD TL3 IR Torch / Illuminator – 850 nm

The PARD TL3 850 nm IR Torch is a compact external infrared illuminator designed to improve the performance of compatible digital night vision devices in dark or low-light conditions.

This version uses an 850 nm infrared wavelength, which PARD recommends when stronger visibility and a brighter night vision image are the main priorities. It is a good choice for users who want improved illumination at longer viewing distances and do not need the greater concealment offered by a 940 nm IR source.

The TL3 offers three infrared illumination levels, an adjustable beam and a listed IR distance of up to approximately 350 metres.

Product Features

• 850 nm infrared illuminator
• Designed for compatible digital night vision devices
• Higher-visibility IR wavelength
• Three IR illumination levels
• Adjustable infrared beam
• Up to approximately 350 m IR distance
• Removable rechargeable 18650 Li-ion battery
• Up to 6 hours operating time
• IP67 rated
• Mounting bracket included
• Battery included
• Compact outdoor-ready design

Specifications

• Brand: PARD
• Model: TL3
• Product Type: IR Illuminator
• Light Type: Infrared
• IR Wavelength: 850 nm
• IR Visibility: Higher Visibility
• IR Levels: 3
• IR Beam: Adjustable
• IR Distance: Up to 350 m
• Battery Type: 18650 Li-ion
• Battery Included: Yes
• Operating Time: Up to 6 Hours
• IP Rating: IP67
• Operating Temperature: -20 °C to 50 °C
• Mount Included: Yes
• Condition: New

Why Choose 850 nm?

The 850 nm wavelength is the better option when image brightness and usable viewing distance are more important than concealment.

PARD describes 850 nm as the higher-visibility option. When used with a compatible night vision device, it can provide a brighter and clearer image than 940 nm in many conditions.

The trade-off is that an 850 nm emitter may show a faint visible red glow at the source.

Three IR Illumination Levels

The TL3 offers three output levels, allowing you to change the amount of infrared light according to the viewing distance and surrounding conditions.

Lower settings are useful at shorter ranges, while higher settings can provide more illumination when viewing distant areas.

Adjustable IR Beam

The infrared beam can be adjusted to suit the scene.

A tighter beam can concentrate the available IR light over a smaller area, while a wider beam provides broader coverage at shorter distances.

IR Distance

PARD lists a maximum infrared illumination distance of up to approximately 350 metres.

Actual performance will depend on the night vision device, weather, surrounding light, target size and other field conditions.

Battery and Runtime

The TL3 uses a removable 18650 Li-ion battery.

PARD lists operating time of up to approximately 6 hours, although runtime will depend on the selected IR level, battery condition and temperature.

IP67 Protection

The TL3 carries an IP67 rating, giving it strong protection against dust and normal outdoor exposure to water.

This makes it suitable for field use in changing weather conditions.

What’s Included?

• 1 × PARD TL3 850 nm IR Illuminator
• 1 × Mounting Bracket
• 1 × Rechargeable 18650 Battery

Compatible Dye-Hard Products

The PARD TL3 is designed to support compatible digital night vision systems.

It is especially useful with PARD night vision products that support or benefit from an external infrared illuminator.

Browse our PARD Night Vision & Thermal Scopes range for compatible devices.

You can also browse our Flashlights & Torches range for additional lighting products.

Care and Maintenance

Keep the IR lens clean and free from dust, fingerprints and moisture.

Use a clean lens cloth rather than abrasive materials.

Keep the battery contacts clean and dry, and remove the battery if the illuminator will be stored for a long period.

Avoid looking directly into the infrared emitter while the unit is switched on.

Manufacturer

For more information, visit the PARD website.

For local product information and support, visit PARD South Africa.

Conclusion

The PARD TL3 850 nm IR Torch is a strong choice for users who want maximum visibility from a compatible digital night vision setup.

Its 850 nm wavelength, three illumination levels, adjustable beam, removable 18650 battery and IP67 protection make it a practical external IR illuminator for demanding night-time use.

Frequently Asked Questions

What does 850 nm mean?
It is the wavelength of the infrared light produced by the illuminator.

Why choose 850 nm instead of 940 nm?
PARD recommends 850 nm when stronger visibility and a brighter night vision image are the main priorities.

How far can the TL3 illuminate?
PARD lists an IR distance of up to approximately 350 metres.

What battery does it use?
It uses a removable rechargeable 18650 Li-ion battery.

Is the battery and mount included?
Yes. The TL3 package includes both the battery and mounting bracket.
