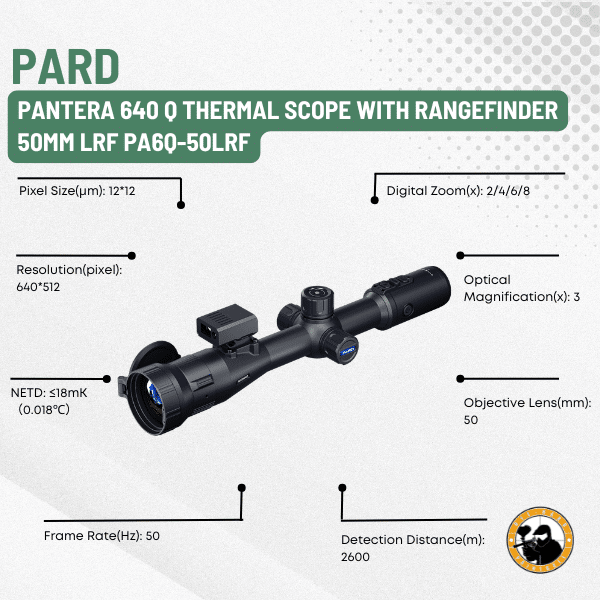

Pard Pantera 640 Q Thermal Scope with Rangefinder 50mm LRF PA6Q-50LRF
R56,000.00
Pard Pantera 640 Q Thermal Scope with Rangefinder 50mm LRF PA6Q-50LRF refined design, enhanced clarity.
Features:
Image Performance
- NETD ≤18mK exceptionally sensitive:
The high-sensitivity NETD ≤18mK significantly improves image quality. In addition, it enables clearer thermal imaging and more precise detection of subtle temperature differences. - 1600×1200 Quad screen, enhanced clarity:
The upgraded high-resolution display delivers sharp and detailed visuals. As a result, it provides a vivid and immersive viewing experience.
Ergonomics and Controls
- Effortless focus with ergonomic design:
The enlarged focus ring improves grip and control. Furthermore, it allows smooth adjustment even when wearing gloves or working in harsh conditions. - Magnetic lens cap, quiet & convenient:
The magnetic lens cap opens and closes silently. Therefore, it helps reduce disturbance and improves stealth in the field. - Larger high-low buttons for easy use:
The enlarged buttons provide strong tactile feedback. As a result, the operation remains easy and accurate, even in low-light conditions.
Power and Durability
- Removable & rechargeable 21700 battery:
The high-capacity battery extends operating time. In addition, it can be quickly replaced or recharged for uninterrupted use in the field. - Lightweight aluminium alloy body:
The durable aluminium body is both strong and lightweight. Therefore, it offers excellent resistance to wear while remaining easy to carry. - IP67 rating:
The device is fully protected against dust and water. As a result, it performs reliably in extreme weather conditions.
Precision and Targeting
- 1000m laser rangefinder & ballistic calculator:
It delivers fast and accurate distance measurement. Furthermore, the ballistic calculator improves shot precision in real time. - 7 reticle shapes in 4 colours:
Users can choose from multiple reticle styles and colours. Therefore, it adapts easily to different hunting scenarios and preferences.
Recording and Tracking
- Recoil-activated recording:
The system records automatically when recoil is detected. In addition, it saves footage in a 20-second loop for easy review. - Hot track function:
It quickly detects and follows heat signatures. As a result, targets remain visible and easier to track in real time.
Imaging Modes
-
- 6 image modes:
The Pantera Q series offers six thermal imaging modes, including WT-HOT, BK-HOT, H-Light, RD-HOT, IN-HOT, and SKY. In addition, users can select modes based on preference and environment. - 3 scene modes:
Scene options include City, Rain, and Forest. Therefore, the device adapts easily to different environmental conditions.
- 6 image modes:
Specifications of the Pard Pantera 640 Q Thermal Scope with Rangefinder 50mm LRF PA6Q-50LRF:
- Type: Uncooled VOx(vanadium oxide)
- Resolution(pixel): 640*512
- Pixel Size(µm): 12*12
- NETD: ≤18mK（0.018℃）
- Frame Rate(Hz): 50
- Detection Distance(m): 2600
- Objective Lens(mm): 50
- Optical Magnification(x): 3
- Digital Zoom(x): 2/4/6/8
- Field of View (Horizontal): 8.8°
- Field of View (Vertical): 7°
- Field of View (Diagonal): 11.2°
- Field of View (m @100m Horizontal): 15.4
- Field of View (m @100m Vertical): 12.3
- Focus Range: 10m-∞
- Eye Relief(mm): 60
- Diopter Adjustment(D): -5~+5
- Type: OLED
- Resolution(pixel): 1600*1200
- Reticle Style: 7
- Reticle Colour: Red/White/Yellow/Green
- Scene Mode: City/Rain/Forest
- Image Mode: WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
- Photo Resolution(pixel): 1600*1200
- Photo Format: .JPG
- Video Resolution(pixel): 1600*1200
- Video Format: .mp4
- Storage(GB): Micro SD card (Max. 128GB)
- Image Engine: Pard IREA
- LRF Detection Range(m/yds): 1000/1200
- Ballistic Calculator: Yes
- PIP: Yes
- Hot Track: Yes
- Gyroscope: Yes
- Recoil-activated Recording: Yes
- Loop Recording: Yes
- E-compass: Yes
- Shutter: Mechanical shutter
- Firmware Upgrade: Yes
- USB Type-C: Yes
- HDMI Output: Yes
- WiFi: Yes
- Supported Apps: PardVision2
- Battery Type: Lithium Ion 21700*1
- Output Voltage(V): 3.7
- Operating Time(h,max): ≤8
- External Power Supply(V): USB Type-C
- Degree of Protection: IP67
- Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
- Recoil Resistance(J): 6000
- Housing: Aluminium Alloy
- Objective Lens: All-glass multi-coated lens
- Product Dimension/with LRF(L * W * H, mm): 345*86*80
- N.W/pcs(with battery, g): 723
View all our Scopes here
Manufacturer: website
| Brand | Pard |
|---|---|
| Colour | Black |
| Pixel Size(µm) | 12*12 |
| NETD | ≤18mK（0.018℃) |
| Frame Rate(Hz) | 50 |
| Detection Distance(m) | 2600 |
| Digital Zoom(x) | 2/4/6/8 |
| Field of View (Horizontal) | 8.8° |
| Field of View (Vertical) | 7° |
| Field of View (Diagonal) | 11.2° |
| Field of View (m @100m Horizontal) | 15.4 |
| Field of View (m @100m Vertical) | 12.3 |
| Diopter Adjustment(D) | -5~+5 |
| Resolution(pixel) | 640*512 |
| Reticle Style | 7 |
| Reticle Colour | Red/White/Yellow/Green |
| Scene Mode | City/Rain/Forest |
| Image Mode | WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY |
| Photo Resolution(pixel) | 1600*1200 |
| Photo Format | .JPG |
| Video Resolution(pixel) | 1600*1200 |
| Video Format | .mp4 |
| Storage(GB) | Micro SD card (Max. 128GB) |
| Image Engine | Pard IREA |
| LRF Detection Range(m/yds) | 1000/1200 |
| Ballistic Calculator | Yes |
| PIP | Yes |
| Hot Track | Yes |
| Recoil-activated Recording | Yes |
| Gyroscope | Yes |
| Loop Recording | Yes |
| E-compass | Yes |
| Shutter | Mechanical shutter |
| Firmware Upgrade | Yes |
| USB Type-C | Yes |
| HDMI Output | Yes |
| WiFi | Yes |
| Supported Apps | PardVision2 |
| Battery Type | Lithium Ion 21700*1 |
| Output Voltage(V) | 3.7 |
| Operating Time(h,max) | ≤8 |
| External Power Supply(V) | USB Type-C |
| Degree of Protection | IP67 |
| Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 |
| Recoil Resistance(J) | 6000 |
| Housing | Aluminum Alloy |
| Magnification | 2.6× optical, 2× / 4× / 6× / 8× digital zoom |
| Lens Coating | All-glass multi-coated objective lens |
| Reticle Type | 7 selectable digital reticle styles with 4 reticle colours (Red, White, Yellow, Green) |
| Ocular Lens Diameter | N/A |
| Objective Lens Diameter | 50 mm |
| Exterior Finish | Matte black aluminium alloy housing |
| Mounting Length | N/A |
| Field of View (100 yards) | Approximately 16.5 yards horizontal (16.5 m @ 100 m; 9.4° horizontal field of view) |
| Exit Pupil | Not applicable (OLED digital display) |
| Eye Relief | 60 mm |
| Adjustment Click Value | N/A |
| Max. elevation adjustment range (MOA) | N/A |
| Max. windage adjustment range (MOA) | N/A |
| Focal Plane | Not applicable (digital reticle) |
| Shockproof | Yes – recoil rated to 6,000 J |
| Waterproof | Yes – IP67 rated |
| Parallax Correction (yds) | Adjustable objective focus from 10 m (10.9 yards) to infinity; diopter adjustment -5D to +5D |
| Illumination | OLED display with illuminated digital reticles; integrated 1,000 m laser rangefinder (LRF) and ballistic calculator; no IR illuminator required (thermal device) |
| Weight | 723 g (including battery) |
| Length | 345 mm (overall dimensions: 345 × 86 × 80 mm) |
