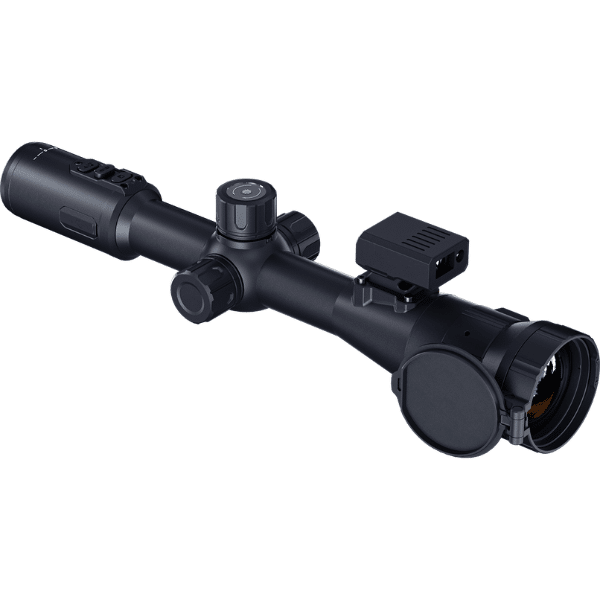

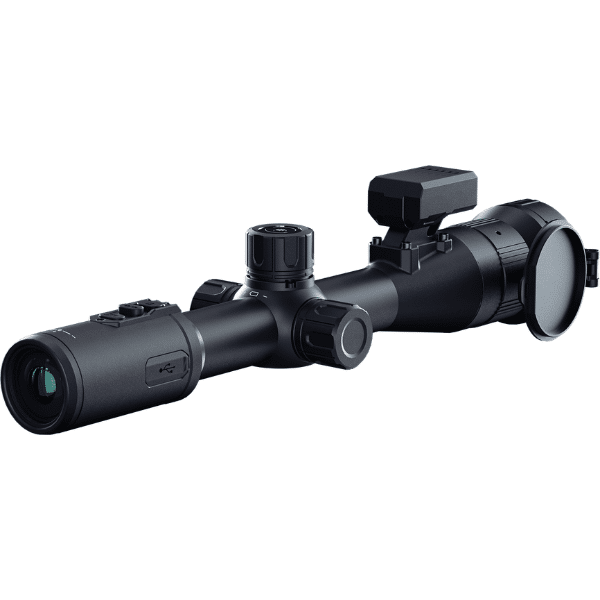

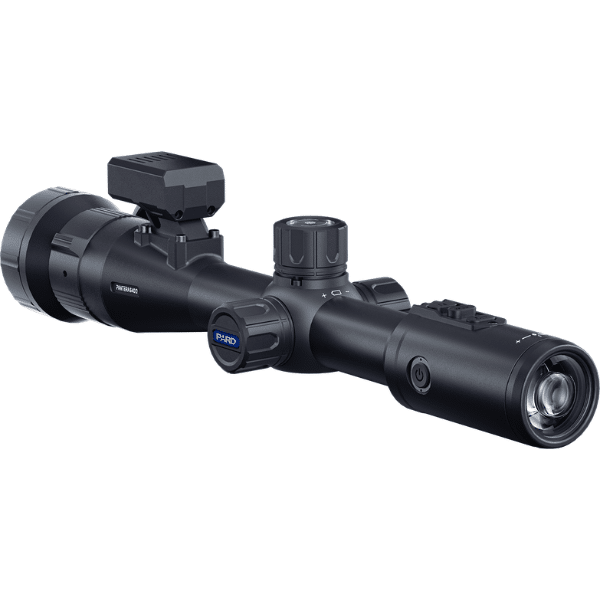

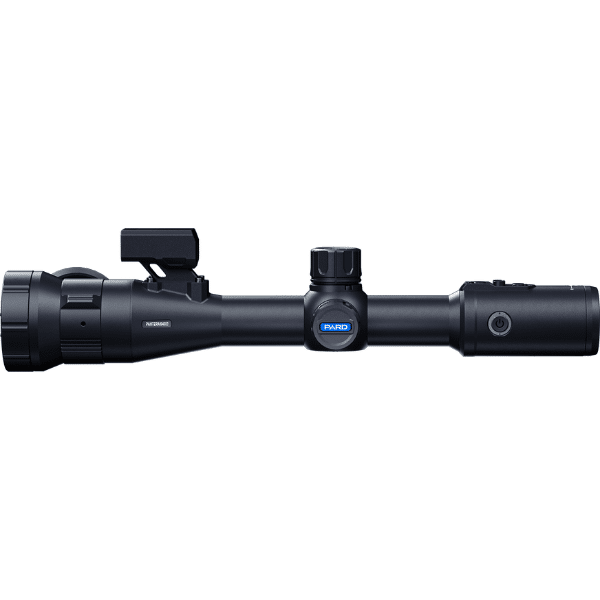

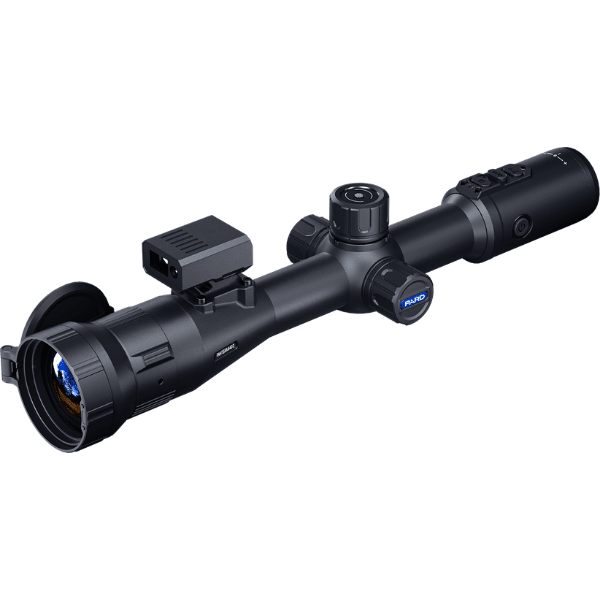

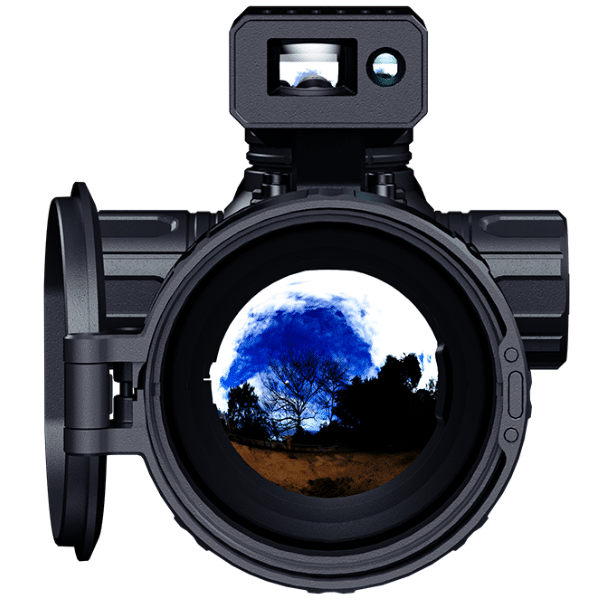

Pard Pantera 480 Q Thermal Scope with Rangefinder 50mm LRF PA4Q-50LRF

Pard Pantera 480 Q Thermal Scope with Rangefinder 50mm LRF PA4Q-50LRF refined design, enhanced clarity.

Image Performance

• NETD ≤18mK ultra-sensitive thermal detection:
  It delivers extremely high thermal sensitivity. As a result, it captures subtle temperature differences with greater clarity. Therefore, image detail and target detection are significantly improved.
• 1600×1200 Quad screen display:
  The upgraded high-resolution screen provides sharp and detailed visuals. In addition, it enhances depth and clarity for a more immersive viewing experience.

Ergonomics and Controls

• Ergonomic focus adjustment:
  The enlarged focus ring improves grip and control. Furthermore, it allows smooth adjustment even when wearing gloves or working in tough conditions.
• Magnetic lens cap design:
  The magnetic cap opens and closes quietly. Therefore, it helps reduce noise and prevents disturbance to wildlife.
• Large high-low control buttons:
  The oversized buttons improve tactile feedback. As a result, the operation remains easy and accurate even in low-light environments.

Power and Durability

• Removable 21700 rechargeable battery:
  The high-capacity battery extends operating time. In addition, it can be quickly replaced or recharged for uninterrupted field use.
• Lightweight aluminium alloy body:
  The durable housing is both strong and lightweight. Therefore, it withstands harsh conditions while maintaining portability.
• IP67 weatherproof rating:
  It offers strong protection against dust and water. As a result, it performs reliably in extreme weather conditions.

Precision and Targeting

• 1000m laser rangefinder with ballistic calculator:
  It provides fast and accurate distance measurement. Furthermore, ballistic calculations improve shooting precision in real time.
• 7 reticle shapes in 4 colours:
  Users can choose from multiple reticle styles and colours. Therefore, it adapts easily to different hunting scenarios and preferences.

Recording and Tracking

• Recoil-activated recording system:
  The device records automatically when recoil is detected. In addition, it stores key moments in a 20-second loop for easy review.
• Hot track function:
  It detects and follows heat signatures quickly. As a result, targets remain visible and easier to track in real time.

Imaging Modes

• 6 image modes:
  It offers multiple thermal palettes, including WT-HOT, BK-HOT, H-Light, RD-HOT, IN-HOT, and SKY. In addition, users can select the best mode for each environment.
• 3 scene modes:
  Scene presets include City, Rain, and Forest. Therefore, image performance adapts easily to changing environments.

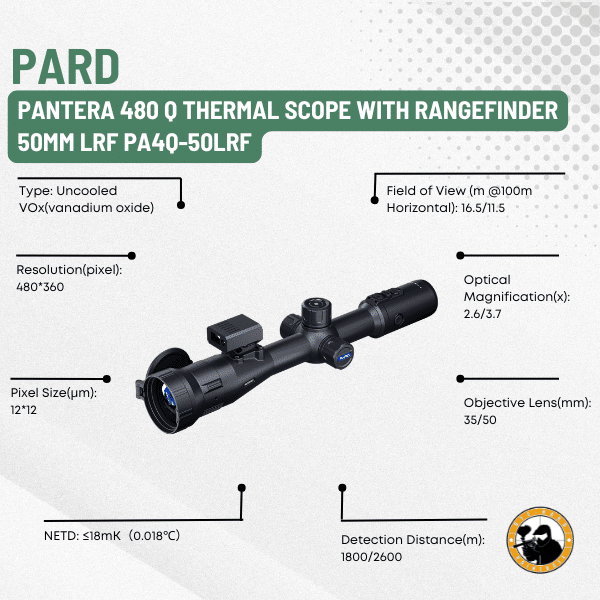

Specifications of the Pard Pantera 480 Q Thermal Scope with Rangefinder 50mm LRF PA4Q-50LRF:

• Type: Uncooled VOx(vanadium oxide)
• Resolution(pixel): 480*360
• Pixel Size(µm): 12*12
• NETD: ≤18mK（0.018℃）
• Frame Rate(Hz): 50
• Detection Distance(m): 1800/2600
• Objective Lens(mm): 35/50
• Optical Magnification(x): 2.6/3.7
• Digital Zoom(x): 2/4/6/8
• Field of View (Horizontal): 9.4°/6.6°
• Field of View (Vertical): 7.1°/4.9°
• Field of View (Diagonal): 11.7°/8.2°
• Field of View (m @100m Horizontal): 16.5/11.5
• Field of View (m @100m Vertical): 12.3/8.6
• Focus Range: 10m-∞
• Eye Relief(mm): 60
• Diopter Adjustment(D): -5~+5
• Type: OLED
• Resolution(pixel): 1600*1200
• Reticle Style: 7
• Reticle Colour: Red/White/Yellow/Green
• Scene Mode: City/Rain/Forest
• Image Mode: WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
• Photo Resolution(pixel): 1600*1200
• Photo Format: .JPG
• Video Resolution(pixel): 1600*1200
• Video Format: .mp4
• Storage(GB): Micro SD card (Max. 128GB)
• Image Engine: Pard IREA
• LRF Detection Range(m/yds): 1000/1200
• Ballistic Calculator: Yes
• PIP: Yes
• Hot Track: Yes
• Gyroscope: Yes
• Recoil-activated Recording: Yes
• Loop Recording: Yes
• E-compass: Yes
• Shutter: Mechanical shutter
• Firmware Upgrade: Yes
• USB Type-C: Yes
• HDMI Output: Yes
• WiFi: Yes
• Supported Apps: PardVision2
• Battery Type: Lithium Ion 21700*1
• Output Voltage(V): 3.7
• Operating Time(h,max): ≤8
• External Power Supply(V): USB Type-C
• Degree of Protection: IP67
• Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
• Recoil Resistance(J): 6000
• Housing: Aluminum Alloy
• Objective Lens: All-glass multi-coated lens
• Product Dimension/with LRF(L * W * H, mm): 345*86*80
• N.W/pcs(with battery, g): 723
