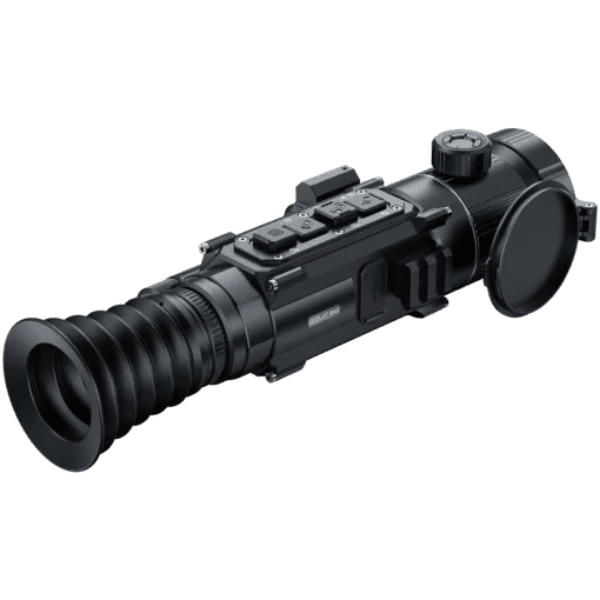

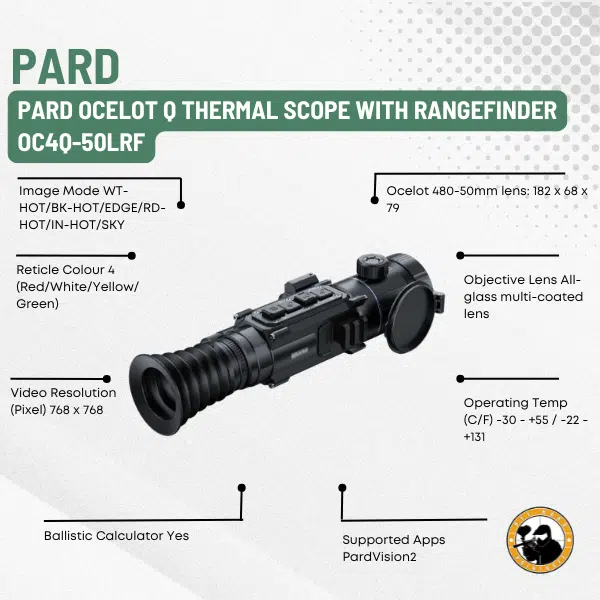

Pard Ocelot Q Thermal Scope with Rangefinder OC4Q-50LRF
R40,250.00
Introducing the Pard Ocelot Q Thermal Scope with Rangefinder OC4Q-50LRF. A premium thermal imaging scope engineered for precision and high performance, ideal for both hunting and tactical applications. Equipped with a powerful 50mm lens, this scope offers an impressive optical magnification of 3.3x, providing enhanced target acquisition capabilities. Its thermal resolution of 480 x 360 pixels, paired with a NETD sensitivity of < 20 mK enables users to detect even the smallest temperature differences, a crucial feature for identifying potential targets against various environmental backgrounds. The integrated laser rangefinder (LRF) boasts a detection range of up to 1000 meters, making it an invaluable asset for long-range assessments.
The Ocelot 480 prides itself on a user-friendly interface displayed on a high-quality 800 x 800 IPS round circular display, ensuring clear visibility and ease of use in various lighting conditions. Users can choose from six image modes and three scene modes to adapt to their environment, and the Picture-in-Picture (PIP) feature allows for close-up views of specific targets without losing context. Additionally, the inclusion of recoil-activated recording captures critical moments during use, while the built-in ballistics calculator aids in making accurate adjustments on-the-fly. With a range of six reticle styles available in four colours (Red, White, Yellow, Green), users can customise their display for optimal performance tailored to individual preferences.
Constructed from lightweight, durable aluminium alloy, the Pard Ocelot 480 is built to withstand harsh conditions with an IP67 rating, ensuring resistance to water and dust ingress. It operates efficiently in a wide temperature range from -30 °C to +55 °C, accommodating users in diverse climates. Powered by a single 21700 lithium-ion battery, which offers an operational time of up to 5 hours, the scope also supports external power supply via USB Type-C, extending its usability. Advanced features such as Wi-Fi connectivity, support for the PardVision2 app, and built-in capabilities like a gyroscope and e-compass position the Ocelot 480 as a leading choice for those seeking high-performance thermal imaging technology.
Features:
- WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- 800 x 800 IPS Display
- -/< 5h of battery life
- 128GB max storage capacity
- 50mm lens
- NETD -/< 20mk
- 800 x 800 IPS round circular display
- Integrated 1000m LRF
- Lightweight and durable aluminium alloy
- 6 image modes
- 3 scene modes
- Picture in picture
- Recoil-activated recording
- 21700 Li-ion battery
- 6 reticle styles and 4 colours
Specifications for the Pard Ocelot Q Thermal Scope with Rangefinder OC4Q-50LRF:
- Thermal Sensor
- Type Uncooled VOx (vanadium oxide)
- Resolution (Pixel) 480 x 360
- Pixel Size (Um) 12 x 12
- Netd -/< 20mK (0.02C)
- Frame Rate (Hz) 50
- Human Detection Distance (M) 2600
- Optics
- Objective Lens (Mm) 50
- Optical Magnification (X) 3.3
- Digital Zoom (X) 2/4/6/8
- Field Of View (Horizontal) 5.0
- Field Of View (Vertical) 5.0
- Field Of View (Diagonal) 7.0
- Eye Relief (Mm) 100
- Diopter Adjustment (D) 5 – 3
- Display
- Type IPS
- Resolution (Pixel) 800 x 800
- Reticle Style 6
- Reticle Colour 4 (Red/White/Yellow/Green)
- Scene Mode City/Rain/Forest
- Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- Photo / Video
- Photo Resolution (Pixel) 1536 x 1536
- Photo Format .JPG
- Video Resolution (Pixel) 768 x 768
- Video Format .mp4
- Storage (Gb) Micro SD card (Max. 128GB)
- Image Engine Pard IREA
- Main Function
- LRF Detection Range (M/Yds) 1000/1200
- Ballistic Calculator Yes
- Pip Yes
- Gyroscope Yes
- Recoil-Activated Recording Yes
- Loop Recording Yes
- Hot Track Yes
- E-Compass Yes
- Microphone Yes
- Firmware Upgrade Yes
- Connections
- USB Type-C Yes
- HDMI Output Yes
- Wi-Fi Yes
- Supported Apps PardVision2
- Power Supply
- Battery Type Lithium-ion 21700×1
- Output Voltage (V) 3.7
- Operating Time (H) -/< 5
- External Power Supply Type-C
- Environmental Characteristic
- Protective Class IP67
- Operating Temp (C/F) -30 – +55 / -22 – +131
- Recoil Resistance (J) 6000
- Material
- Housing Aluminium Alloy
- Objective Lens All-glass multi-coated lens
- Measurement
- Product Dimension (With LRF, L X W X H, Mm) Ocelot 480-35mm lens: 182 x 68 x 79
- Ocelot 480-50mm lens: 182 x 68 x 79
- N.W/Pcs (With LRF and Battery, G) Ocelot 480-35mm lens: 616.5g
- Ocelot 480-50mm lens: 647.5g
View all our Scopes here
Manufacturer: website
| Brand | Pard |
|---|---|
| Colour | Black |
| PARD Thermal Sensor | Type Uncooled VOx (vanadium oxide) Resolution (Pixel) 480 x 360 Pixel Size (Um) 12 x 12 Netd -/< 20mK (0.02C) Frame Rate (Hz) 50 Human Detection Distance (M) 2600 |
| Optics | Objective Lens (Mm) 50 Optical Magnification (X) 3.3 Digital Zoom (X) 2/4/6/8 Field Of View (Horizontal) 5.0 Field Of View (Vertical) 5.0 Field Of View (Diagonal) 7.0 Eye Relief (Mm) 100 Diopter Adjustment (D) 5 – 3 |
| Display | Type IPS Resolution (Pixel) 800 x 800 Reticle Style 6 Reticle Colour 4 (Red/White/Yellow/Green) Scene Mode City/Rain/Forest Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
| Photo / Video | Photo Resolution (Pixel) 1536 x 1536 Photo Format .JPG Video Resolution (Pixel) 768 x 768 Video Format .mp4 Storage (Gb) Micro SD card (Max. 128GB) Image Engine Pard IREA |
| Main Functions | LRF Detection Range (M/Yds) 1000/1200 Ballistic Calculator Yes Pip Yes Gyroscope Yes Recoil-Activated Recording Yes Loop Recording Yes Hot Track Yes E-Compass Yes Microphone Yes Firmware Upgrade Yes |
| Connections | USB Type-C Yes HDMI Output Yes Wi-Fi Yes Supported Apps PardVision2 |
| Power Supply | Battery Type Lithium-ion 21700×1 Output Voltage (V) 3.7 Operating Time (H) -/< 5 External Power Supply Type-C |
| Environmental Characteristics | Environmental Characteristic Protective Class IP67 Operating Temp (C/F) -30 – +55 / -22 – +131 Recoil Resistance (J) 6000 |
| Material | Housing Aluminium Alloy Objective Lens All-glass multi-coated lens |
| Measurement | Product Dimension (With LRF, L X W X H, Mm) Ocelot 480-35mm lens: 182 x 68 x 79 Ocelot 480-50mm lens: 182 x 68 x 79 N.W/Pcs (With LRF and Battery, G) Ocelot 480-35mm lens: 616.5g Ocelot 480-50mm lens: 647.5g |
