PARD | Night Stalker 5K eX LRF | 70 mm | NS5E-70LRF

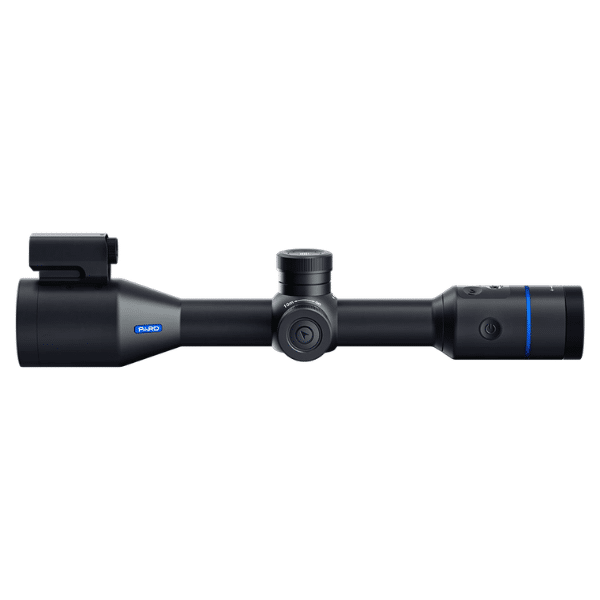

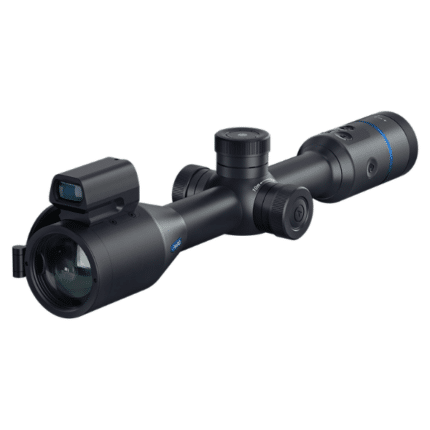

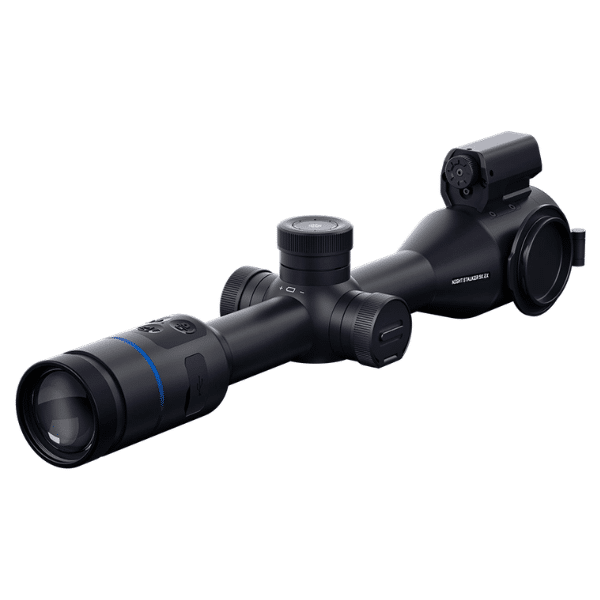

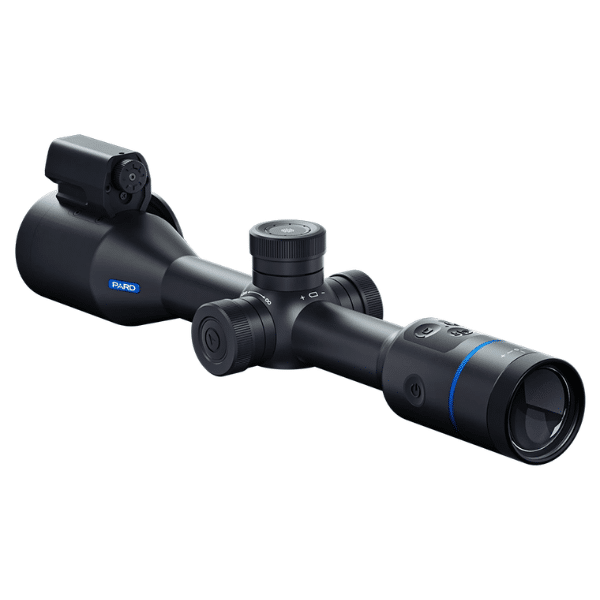

PARD Night Stalker 5K eX LRF – 70 mm

The PARD Night Stalker 5K eX NS5E-70LRF is a high-resolution digital night vision scope designed for users who want strong image detail, long-range magnification and a built-in laser rangefinder in one streamlined optic.

This 70 mm version uses a 4096 × 3024 5K CMOS sensor, a high-resolution 2560 × 2560 OLED display, and an integrated laser rangefinder rated up to approximately 1000 metres.

It also includes a ballistic calculator, picture-in-picture, recoil-activated recording, Wi-Fi, HDMI, USB-C connectivity and a dual-battery system for extended operating time.

Product Features

• True 5K digital night vision sensor
• 4096 × 3024 resolution
• 70 mm objective lens
• 5.5×–22× magnification range
• Built-in laser rangefinder
• LRF range up to approximately 1000 m
• Integrated ballistic calculator
• 2560 × 2560 OLED display
• Picture-in-picture mode
• Recoil-activated recording
• Loop recording
• Built-in Wi-Fi
• HDMI output
• USB Type-C
• PardVision2 app support
• Micro SD support up to 128 GB
• Built-in 21700 battery
• Removable 18650 battery
• Up to 6 hours operating time
• IP67 protection
• 6000 J recoil resistance
• Aluminium alloy housing
• Detachable IR illuminator support

Specifications

• Brand: PARD
• Model: Night Stalker 5K eX LRF
• Model Code: NS5E-70LRF
• Product Type: Digital Night Vision Scope
• Sensor Resolution: 4096 × 3024
• Sensor Pixel Size: 2 µm
• Sensitivity: 0.001 lux
• Frame Rate: 60 Hz
• Objective Lens: 70 mm
• Optical Magnification: 5.5×–22×
• Horizontal Field of View: 4.9°
• Vertical Field of View: 3.9°
• Diagonal Field of View: 6.3°
• Field of View at 100 m: Approx. 8.6 × 6.9 m
• Focus Range: 10 m to Infinity
• Eye Relief: 60 mm
• Diopter Adjustment: ±5 D
• Display Type: OLED
• Display Resolution: 2560 × 2560
• LRF: Yes
• LRF Range: Up to 1000 m
• Ballistic Calculator: Yes
• Picture-in-Picture: Yes
• Gyroscope: Yes
• Recoil-Activated Recording: Yes
• Loop Recording: Yes
• Wi-Fi: Yes
• HDMI: Yes
• USB-C: Yes
• App: PardVision2
• Storage: Micro SD up to 128 GB
• Battery System: Built-in 21700 + Removable 18650
• Operating Time: Up to 6 Hours
• IP Rating: IP67
• Operating Temperature: -30 °C to 55 °C
• Recoil Resistance: 6000 J
• Housing: Aluminium Alloy
• Dimensions: 358 × 87 × 71 mm
• Weight: Approx. 952 g with battery

5K Digital Imaging

The Night Stalker 5K eX uses a 4096 × 3024 CMOS sensor, which provides more image detail than a standard 4K sensor.

That extra resolution becomes especially useful at higher magnification, where maintaining detail can make a noticeable difference.

70 mm Objective Lens

This NS5E-70LRF version uses the larger 70 mm objective lens.

PARD lists a magnification range of 5.5× to 22×, making it better suited to users who prioritise longer-range observation and higher magnification.

Built-In 1000 m Laser Rangefinder

The laser rangefinder is integrated into the lens design rather than mounted as a separate external unit.

PARD lists a maximum ranging distance of approximately 1000 metres.

Ballistic Calculator

The built-in ballistic calculator works with range information and user-entered data to provide additional aiming information.

This keeps ranging and ballistic functions within the same optic.

2560 × 2560 OLED Display

The scope uses a 1.03-inch circular OLED display with a resolution of 2560 × 2560.

The high-resolution display gives the user a detailed and high-contrast view, while the circular format creates a more traditional scope-like viewing experience.

Recording and Connectivity

The Night Stalker 5K eX supports:

• Photo capture
• Video recording
• Recoil-activated recording
• Loop recording
• Time stamp
• Wi-Fi
• HDMI output
• USB Type-C
• PardVision2 app connection

A Micro SD card up to 128 GB can be used for storage.

Dual Battery System

The 5K eX uses a built-in 21700 battery together with a removable 18650 battery.

This gives the scope extended operating time while still allowing the removable battery to be quickly replaced when needed.

PARD lists a maximum runtime of approximately 6 hours.

Detachable IR Illuminator

The Night Stalker 5K eX is designed to work with a detachable IR illuminator.

The IR beam can be adjusted between a tighter beam for longer-distance viewing and a wider beam for closer observation.

Because PARD does not specify the IR wavelength on the main product page, do not list 850 nm or 940 nm unless the exact supplied module is confirmed.

IP67 and Recoil Resistance

The aluminium-alloy body carries an IP67 rating and PARD lists recoil resistance up to 6000 Joules.

This gives the scope strong protection for normal outdoor use in demanding conditions.

Compatible Dye-Hard Products

For compatible PARD night vision products and accessories, browse our PARD Night Vision & Thermal Scopes range.

You can also link this product directly to compatible PARD IR illuminators, batteries and chargers once those exact products are loaded on Dye-Hard.

Care and Maintenance

Keep the objective and eyepiece lenses clean and free from dust, oil and fingerprints.

Use a soft lens cloth and avoid abrasive cleaners. Keep the battery compartment, USB-C port and other connections clean and dry.

Remove the removable battery if the scope will be stored for a long period, and keep the optic protected in a dry case when not in use.

Use only official PARD firmware and support resources where applicable.

Manufacturer

For more information, visit the PARD website.

Conclusion

The PARD Night Stalker 5K eX NS5E-70LRF is a strong choice for users who want high-resolution digital night vision with long-range magnification and integrated ranging.

Its 5K sensor, 70 mm lens, 1000 m LRF, ballistic calculator, high-resolution OLED display and dual-battery system place it above the smaller 4K Mini range in both image detail and long-range capability.

Frequently Asked Questions

What sensor does the Night Stalker 5K eX use?
It uses a 4096 × 3024 5K CMOS sensor.

What magnification does the 70 mm version offer?
PARD lists approximately 5.5× to 22×.

Does it have a built-in rangefinder?
Yes. The integrated LRF is rated up to approximately 1000 metres.

What batteries does it use?
It uses a built-in 21700 battery and a removable 18650 battery.

Can it record video?
Yes. It supports normal video, loop recording and recoil-activated recording.
