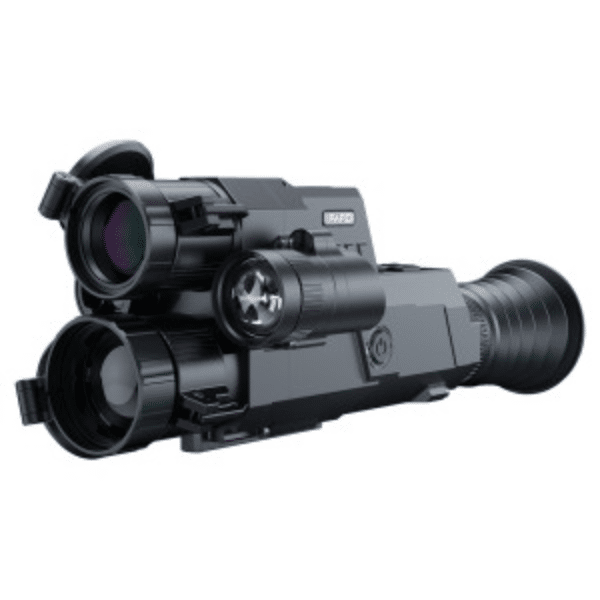

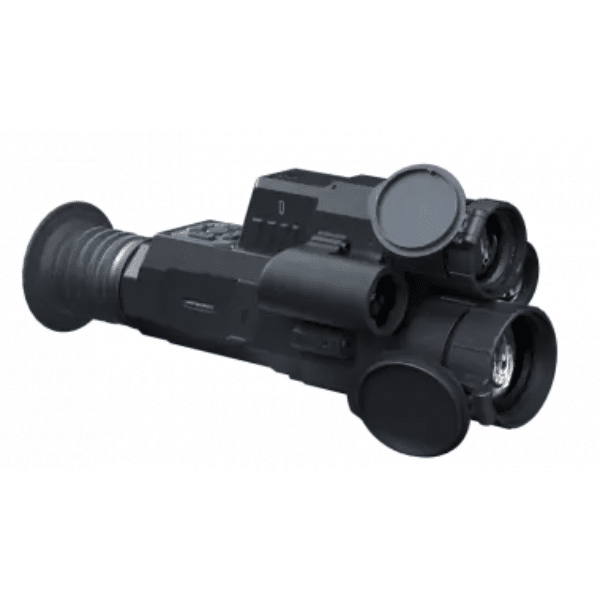

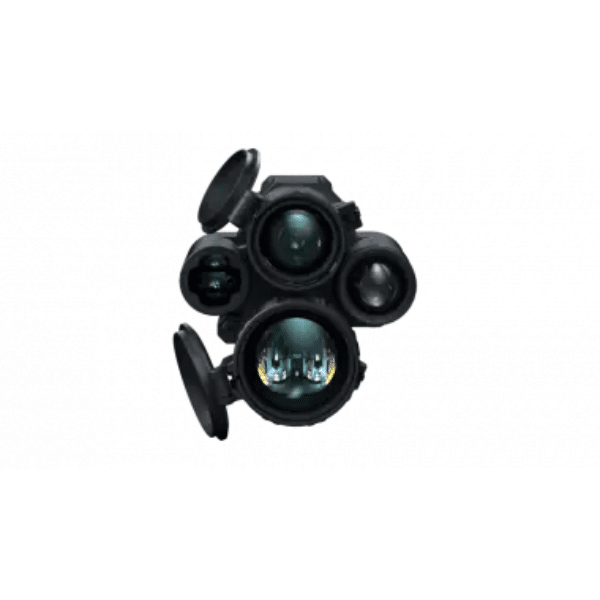

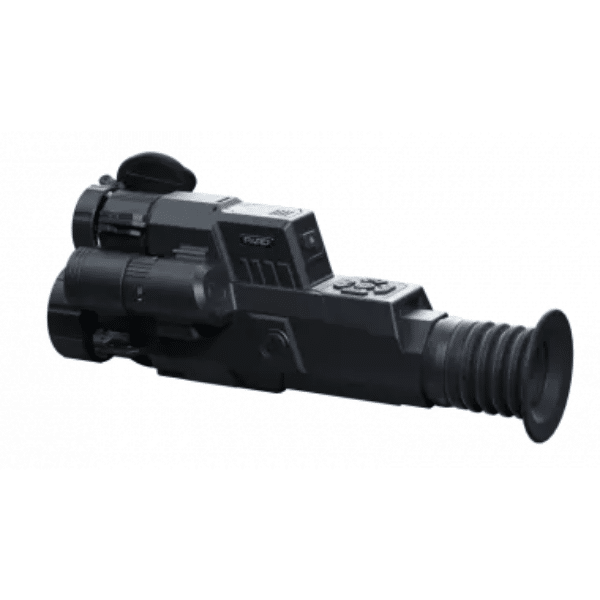

Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA6CQ-45/70LRF
R73,500.00
The Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA6CQ-45/70LRF is an advanced multi-spectral riflescope designed for shooters who demand cutting-edge technology, exceptional detection capability, and reliable performance in all lighting conditions. By combining high-resolution thermal imaging with a powerful visible-light digital sensor, this scope allows users to seamlessly switch between viewing modes for improved target detection, identification, and engagement both day and night.
At the core of the Landsat Q is a 640 × 512 uncooled VOx thermal sensor with an ultra-sensitive ≤18 mK NETD, capable of detecting subtle heat signatures at distances of up to 1800–2100 meters. The scope is further enhanced by a 2688 × 1520 visible-light sensor, delivering sharp colour or black-and-white imagery even in extremely low light conditions. Combined with a high-resolution 1600 × 1200 OLED display, users benefit from crisp, detailed visuals and improved situational awareness in the field.
Engineered for precision shooting, the Landsat Q integrates a laser rangefinder capable of measuring distances up to 1000 meters, along with a built-in ballistic calculator, picture-in-picture functionality, and multiple scene and colour display modes. With rugged IP67-rated aluminium construction, recoil resistance up to 6000 J, and reliable operation in temperatures from −30°C to +55°C, the device is built to perform in demanding environments where reliability and performance are critical.
Specifications:
- Device Class: Multi-spectral scope
- Thermal Imaging Sensor
- Sensor Type: Uncooled VOx (Vanadium Oxide)
- Resolution: 640 × 512 pixels
- Pixel Size: 12 × 12 µm
- NETD (Thermal Sensitivity): ≤18 mK (0.018°C)
- Frame Rate: 50 Hz
- Detection Distance: 1800 m / 2100 m
- Image Engine: PARD IREA
- Lens (Focal Length): 35 mm / 45 mm
- Optical Magnification: 2.1× / 2.7×
- Digital Zoom: 2× / 4× / 6× / 8×
- Field of View (Degrees):
- Horizontal: 12.5° / 9.8°
- Vertical: 10° / 7.8°
- Diagonal: 16° / 12.5°
- Field of View (at 100 m):
- Horizontal: 21.9 m / 17.1 m
- Vertical: 17.6 m / 13.7 m
- Field of View (Degrees):
- Focus Range: 3 m – ∞
- Visible Light Sensor
- Resolution: 2688 × 1520 pixels
- Pixel Size: 2.9 µm
- Sensitivity: 0.001 lux
- Frame Rate: 60 Hz (Colour) / 30 Hz (Black & White)
- Image Engine: PARD VLEA
- Objective Lens: 70 mm
- Optical Magnification: 6.9×
- Digital Zoom: 2×
- Field of View:
- Horizontal: 3.8°
- Vertical: 2.8°
- Diagonal: 4.7°
- Field of View (at 100 m):
- Horizontal: 6.6 m
- Vertical: 5.0 m
- Focus Range: 3 m – ∞
- Display
- Display Type: OLED
- Resolution: 1600 × 1200 pixels
- Line of Sight Styles: 6
- Reticle Colours: 4 (Red, White, Yellow, Green)
- Scene Modes: City / Rain / Forest
- Picture Modes: WT-HOT / BK-HOT / RD-HOT / IN-HOT / SKY / Colour / Mono
- Eye Relief: 50 mm
- Diopter Adjustment: −5 to +5 D
- Photo & Video
- Photo Resolution: TBD
- Photo Format: .JPG
- Video Resolution: TBD
- Video Format: .MP4
- Storage: Micro SD card (Max. 128 GB)
- Main Functions
- Laser Rangefinder Range: 1200 yd / 1000 m
- Ballistic Calculator: Yes
- Picture-in-Picture (PIP): Yes
- Gyroscope: Yes
- Loop Recording: Yes
- Feedback-Activated Recording: Yes
- E-Compass: Yes
- Locking Mechanism: Mechanical
- Firmware Updates: Supported
- IR Illuminator
- IR Power: 5 W
- IR Illumination Levels: 3
- IR Distance: Up to 350 m
- IR Wavelength: 850 nm or 940 nm (ordered separately)
- Interfaces & Connectivity
- USB Type-C: Yes
- HDMI Output: Yes
- Wi-Fi: Yes
- Supported App: PardVision2
- Power Supply
- Battery Type: Li-ion 21700 ×1
- Output Voltage: 3.7 V
- Operating Time: Up to 6 hours
- External Power Supply: Type-C
- Environmental Characteristics
- Protection Rating: IP67 (Waterproof & Dustproof)
- Operating Temperature: −30°C to +55°C (−22°F to +131°F)
- Recoil Resistance: Up to 6000 J
- Materials
- Housing: Aluminium Alloy
- Objective Lens Material: Glass
Conclusion for the Pard Landsat Q Thermal Day and Night Vision Scope with Rangefinder LA6CQ-45/70LRF:
The Pard Landsat Q LA6CQ-45/70 LRF stands out as a powerful and versatile multispectral optic designed for serious hunters, professional users, and tactical shooters. By combining thermal imaging, digital night vision, and precision rangefinding in a single system, it enables users to detect, identify, and engage targets with confidence across a wide range of environments.
In addition, the Landsat Q features an integrated laser rangefinder and ballistic calculator that work together to improve long-range shooting accuracy. Furthermore, it offers multiple viewing modes, allowing users to adapt quickly to changing weather, lighting, and terrain conditions. Meanwhile, built-in Wi-Fi connectivity and onboard video recording make it easy to capture, store, and share footage directly from the field. As a result, the Landsat Q provides a complete observation and targeting solution within one compact platform.
Moreover, the scope is constructed from a durable aluminium housing that is built to withstand harsh environments and demanding field use. Consequently, it delivers reliable performance in challenging conditions, whether used during daytime observation or nighttime operations.
Overall, the Pard Landsat Q LA6CQ-45/70 LRF combines high-resolution imaging, advanced targeting features, and exceptional long-range capability. Whether you are tracking game, conducting professional fieldwork, or operating in tactical environments, this multispectral scope delivers the versatility, durability, and performance needed for dependable day and night use.
View all our Scopes here
Manufacturer: website
| Brand | Pard |
|---|---|
| Colour | Black |
| Thermal Imaging Sensor | Sensor Type: Uncooled VOx (Vanadium Oxide) Resolution: 640 × 512 pixels Pixel Size: 12 × 12 µm NETD (Thermal Sensitivity): ≤18 mK (0.018°C) Frame Rate: 50 Hz Detection Distance: 1800 m / 2100 m Image Engine: PARD IREA Lens (Focal Length): 35 mm / 45 mm Optical Magnification: 2.1× / 2.7× Digital Zoom: 2× / 4× / 6× / 8× Field of View (Degrees): Horizontal: 12.5° / 9.8° Vertical: 10° / 7.8° Diagonal: 16° / 12.5° Field of View (at 100 m): Horizontal: 21.9 m / 17.1 m Vertical: 17.6 m / 13.7 m Focus Range: 3 m – ∞ |
| Visible Light Sensor | Resolution: 2688 × 1520 pixels Pixel Size: 2.9 µm Sensitivity: 0.001 lux Frame Rate: 60 Hz (Colour) / 30 Hz (Black & White) Image Engine: PARD VLEA Objective Lens: 70 mm Optical Magnification: 6.9× Digital Zoom: 2× |
| Field of View | Horizontal: 3.8° Vertical: 2.8° Diagonal: 4.7° Field of View (at 100 m): Horizontal: 6.6 m Vertical: 5.0 m Focus Range: 3 m – ∞ |
| Display | Display Type: OLED Resolution: 1600 × 1200 pixels Line of Sight Styles: 6 Reticle Colours: 4 (Red, White, Yellow, Green) Scene Modes: City / Rain / Forest Picture Modes: WT-HOT / BK-HOT / RD-HOT / IN-HOT / SKY / Colour / Mono Eye Relief: 50 mm Diopter Adjustment: −5 to +5 D |
| Photo & Video | Photo Resolution: TBD Photo Format: .JPG Video Resolution: TBD Video Format: .MP4 Storage: Micro SD card (Max. 128 GB) |
| Main Functions | Laser Rangefinder Range: 1200 yd / 1000 m Ballistic Calculator: Yes Picture-in-Picture (PIP): Yes Gyroscope: Yes Loop Recording: Yes Feedback-Activated Recording: Yes E-Compass: Yes Locking Mechanism: Mechanical Firmware Updates: Supported |
| IR Illuminator | IR Power: 5 W IR Illumination Levels: 3 IR Distance: Up to 350 m IR Wavelength: 850 nm or 940 nm (ordered separately) |
| Interfaces & Connectivity | USB Type-C: Yes HDMI Output: Yes Wi-Fi: Yes Supported App: PardVision2 |
| Power Supply | Battery Type: Li-ion 21700 ×1 Output Voltage: 3.7 V Operating Time: Up to 6 hours External Power Supply: Type-C |
| Environmental Characteristics | Protection Rating: IP67 (Waterproof & Dustproof) Operating Temperature: −30°C to +55°C (−22°F to +131°F) Recoil Resistance: Up to 6000 J |
| Material | Housing: Aluminium Alloy Objective Lens Material: Glass |
| Magnification | 2.0× (thermal) / 6.1× (day & night vision) optical; 2× / 4× / 6× / 8× digital zoom (thermal); 3× digital zoom (day/night) |
| Lens Coating | All-glass multi-coated objective lens |
| Reticle Type | 6 selectable digital reticle styles with 4 reticle colours (Red, White, Yellow, Green) |
| Ocular Lens Diameter | N/A |
| Objective Lens Diameter | 45 mm (thermal) / 70 mm (day & night vision) |
| Exterior Finish | Matte black aluminium alloy housing |
| Mounting Length | N/A |
| Field of View (100 yards) | Thermal: Approximately 15.4 yards horizontal (8.8° HFOV) Day/Night: Approximately 6.6 yards horizontal (3.8° HFOV) |
| Exit Pupil | Not applicable (1600 × 1200 OLED display) |
| Eye Relief | 50 mm |
| Adjustment Click Value | N/A |
| Max. elevation adjustment range (MOA) | N/A |
| Max. windage adjustment range (MOA) | N/A |
| Focal Plane | Not applicable (digital reticle) |
| Shockproof | Yes – recoil rated to 6,000 J |
| Waterproof | Yes – IP67 rated |
| Parallax Correction (yds) | Adjustable focus from 3.3 yards (3 m) to infinity; diopter adjustment -5D to +5D |
| Illumination | Built-in 850 nm or 940 nm IR illuminator, 5 W, 3 brightness levels, up to 350 m illumination distance; integrated 1,000 m laser rangefinder (LRF) and ballistic calculator |
| Weight | 820 g (including IR illuminator, LRF and battery) |
| Length | 215 mm (overall dimensions: 215 × 94 × 91 mm) |
