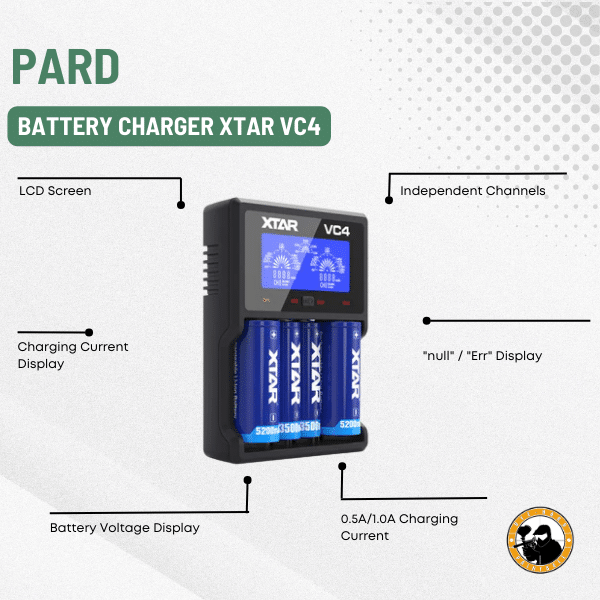

The Pard Battery Charger XTAR VC4 is a powerful and intelligent charging solution designed for users who need versatility, reliability, and detailed charging information. With support for a wide range of Li-ion and Ni-MH batteries, the VC4 makes it easy to charge multiple battery types and sizes at the same time. Its clear LCD tachometer-style display provides real-time charging data, including current, voltage, capacity, and battery type, giving users full insight into the charging process. Powered by a convenient USB connection and built with advanced safety and monitoring features, the XTAR VC4 delivers efficient and dependable charging for everyday battery users and enthusiasts alike.

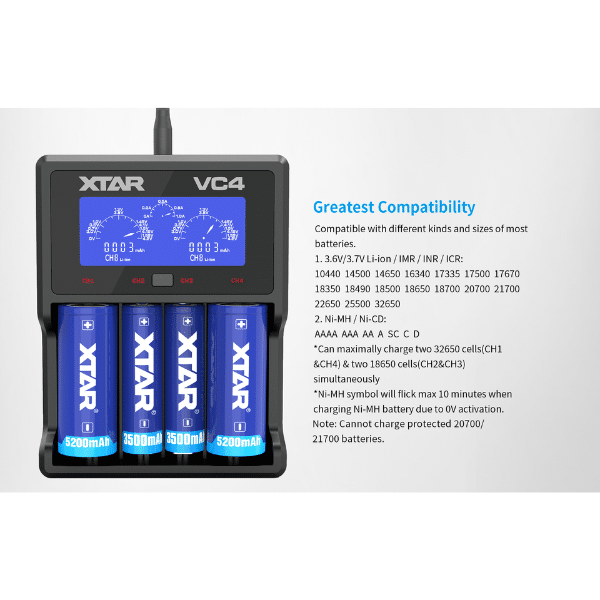

Greatest Compatibility
- Compatible with different kinds and sizes of most batteries.
- 1.3.6V/3.7V Li-ion / IMR / INR/ ICR:
- 10440 14500 14650 16340 17335 17500 17670
- 18350 18490 18500 18650 18700 20700 21700
- 22650 25500 32650
- 2. Ni-MH / Ni-CD:
- AAAA AAA AA A SC C D
- *Can maximally charge two 32650 cells(CH1
- &CH4) & two 18650 cells(CH2&CH3)
- simultaneously
- *Ni-MH symbol will flick max 10 minutes when charging the Ni-MH battery due to OV activation.
Note: Cannot charge protected 20700/21700 batteries.

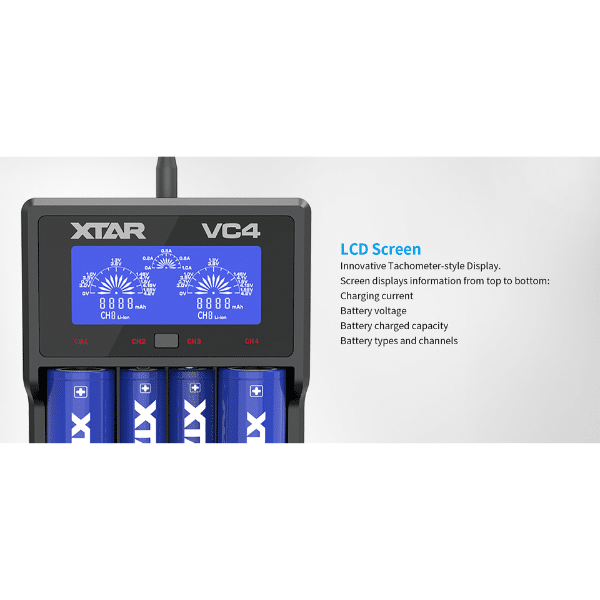

LCD Screen
Innovative Tachometer-style Display.
Screen displays information from top to bottom:
- Charging current
- Battery voltage
- Battery charged capacity
- Battery types and channels

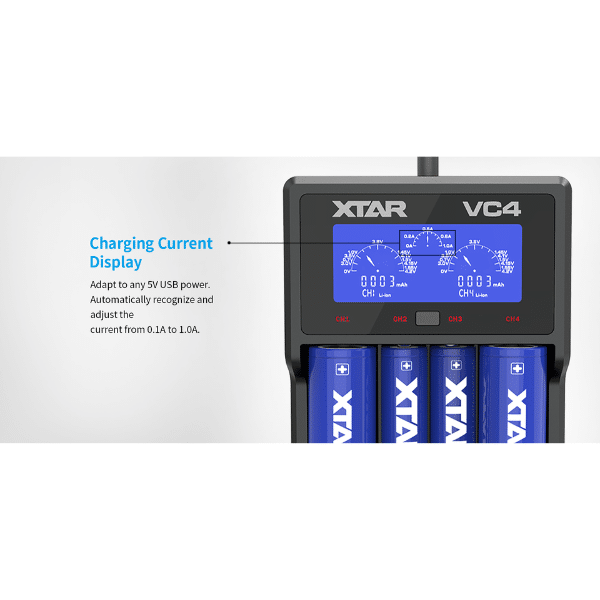

Charging Current Display
- Adapt to any 5V USB power.
- Automatically recognise and adjust the current from 0.1A to 1.0A.
Battery Voltage Display
- Know how full your batteries are.
- Each interval of battery voltage display is about 10% of your battery capacity.
- Batteries are 100% full at 4.2V.

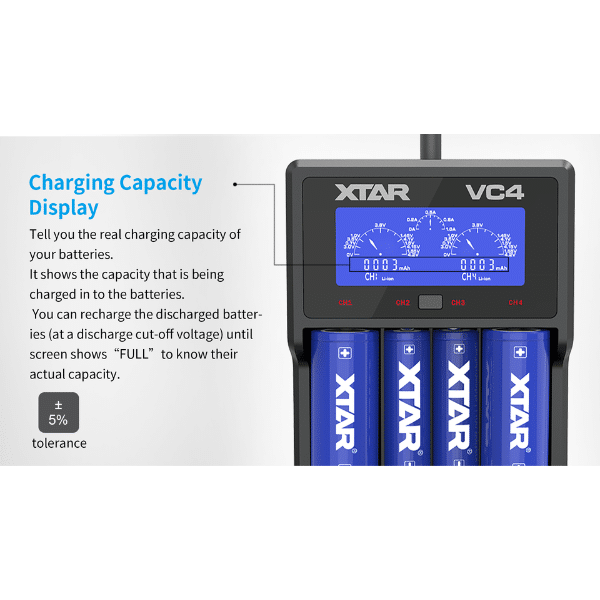

Charging Capacity Display
- Tell you the real charging capacity of your batteries.
- It shows the capacity that is being charged into the batteries.
- You can recharge the discharged batteries (at a discharge cut-off voltage) until the screen shows “FULL” to know their actual capacity.
- 土 5% tolerance.

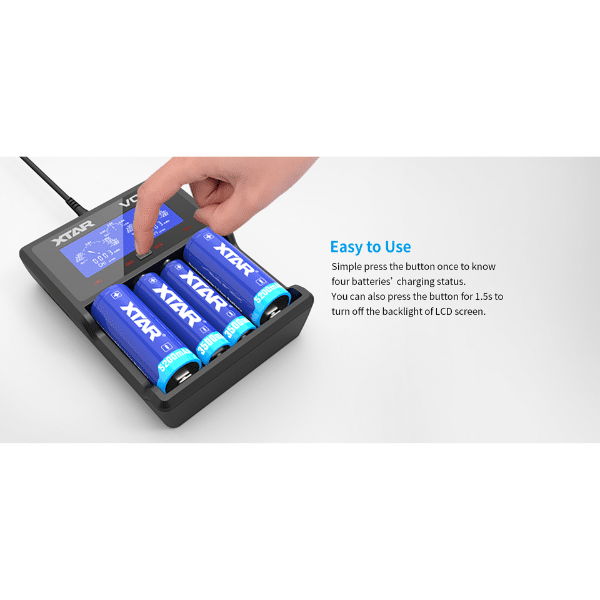

Easy to Use
- Simply press the button once to know four batteries’ charging status.
- You can also press the button for 1.5s to turn off the backlight of the LCD screen.

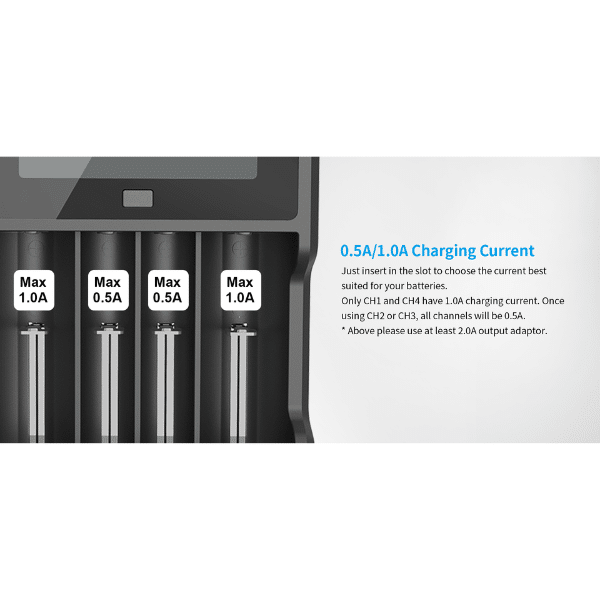

0.5A/1.0A Charging Current
Just insert in the slot to choose the current best suited for your batteries.
Only CH1 and CH4 have a 1.0A charging current. Once using CH2 or CH3, all channels will be 0.5A.
- Above, please use at least a 2.0A output adaptor.

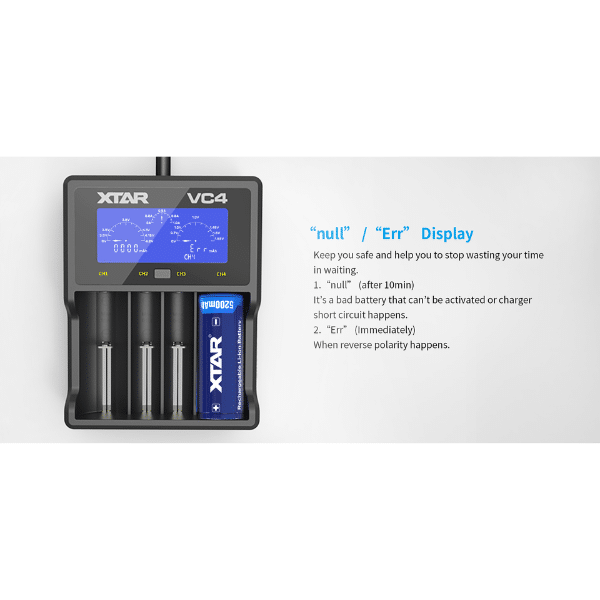

“null” / “Err” Display
Keep you safe and help you to stop wasting your time waiting.
1. “null” (after 10min)
It’s a bad battery that can’t be activated, or a charger short circuit happens.
2. “Err” (Immediately)
When reverse polarity happens.

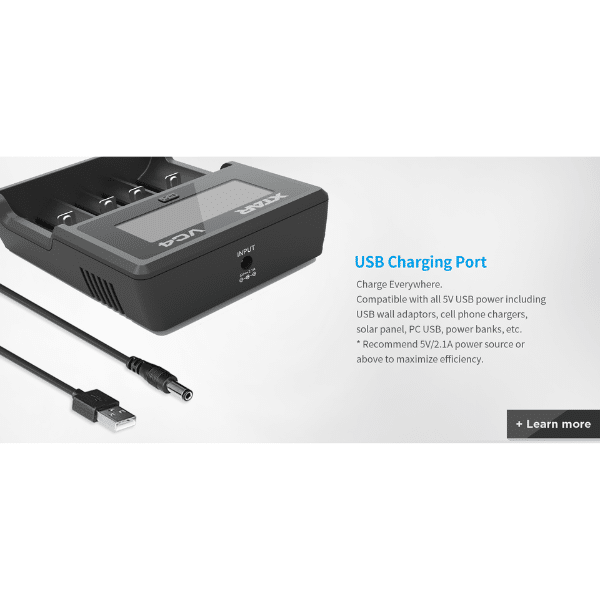

USB Charging Port
Charge Everywhere.
Compatible with all 5V USB power, including
USB wall adaptors, cell phone chargers, solar panels, PC USB, power banks, etc.
- Recommend a 5V/2.1A power source or above to maximise efficiency.

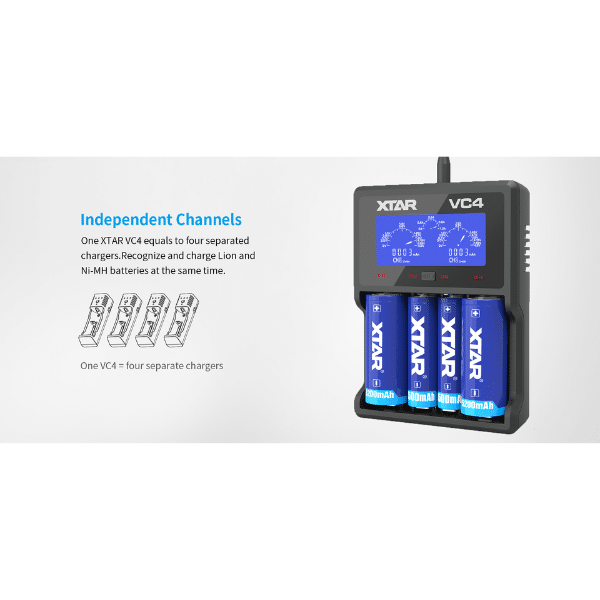

Independent Channels
- One XTAR VC4 equals four separate chargers. Recognise and charge Lion and Ni-MH batteries at the same time.
- One VC4 = four separate chargers.

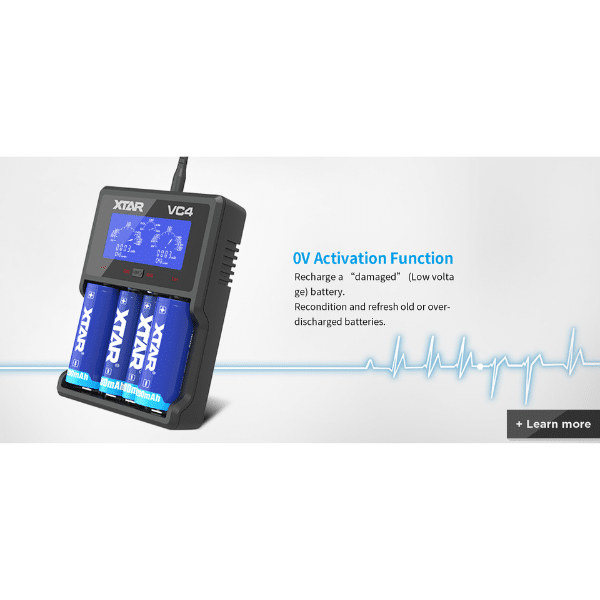

OV Activation Function
- Recharge a “damaged” (low voltage) battery.
- Recondition and refresh old or over-discharged batteries.

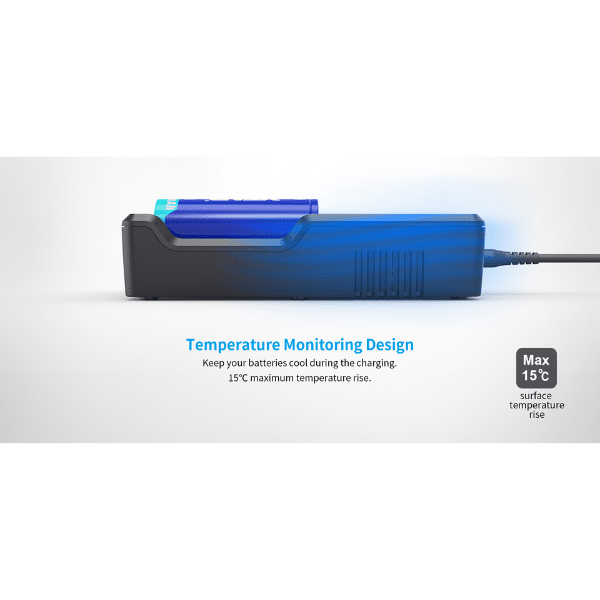

Temperature Monitoring Design
- Keep your batteries cool during charging.
- 15°C maximum temperature rise.
Conclusion:
Combining broad battery compatibility, intelligent charging technology, and a detailed LCD display, the XTAR VC4 offers a complete charging solution in one compact device. With four independent charging channels, automatic current adjustment, and built-in safety features such as reverse polarity protection and temperature monitoring, users can charge multiple batteries confidently and efficiently. The ability to revive over-discharged batteries, monitor charging capacity, and power the charger from virtually any USB source makes the VC4 both practical and highly versatile. Whether at home, at work, or on the go, the XTAR VC4 is a reliable charger designed to keep your batteries performing at their best.
