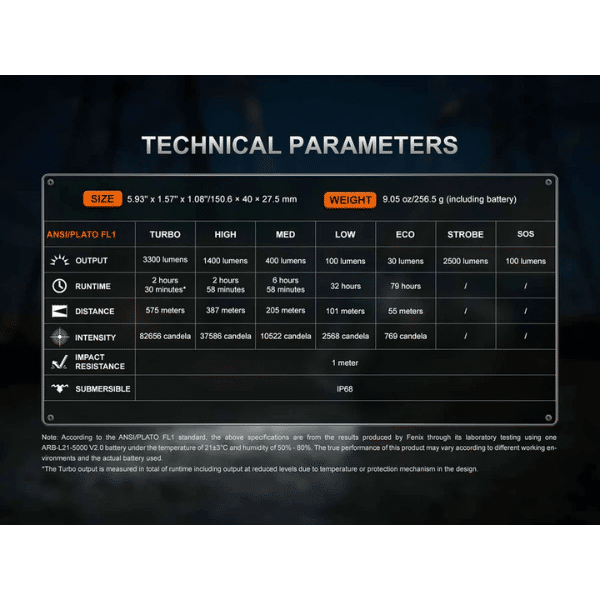

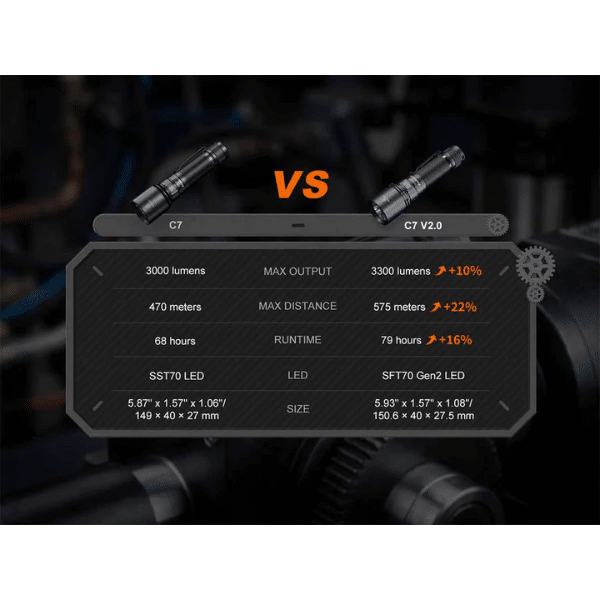

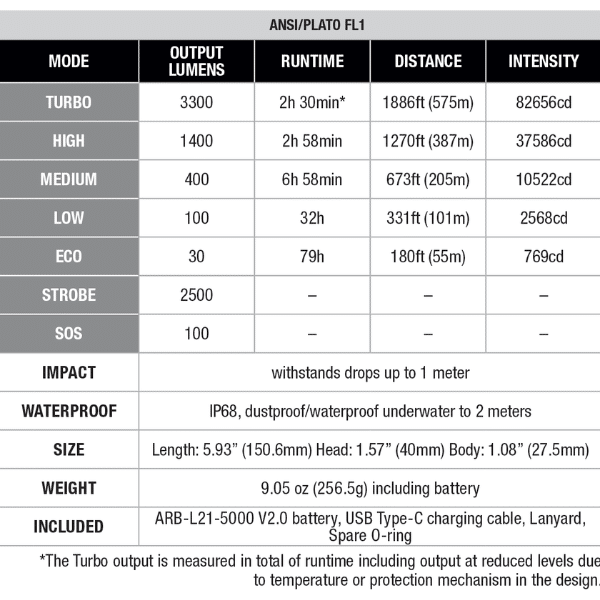

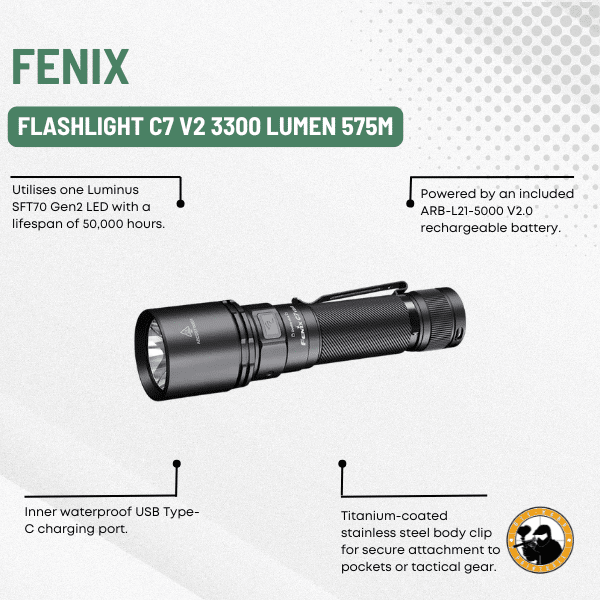

Specifications:

• Max Lumens: 3300
• Max Beam Distance: 1886 feet (575 meters)

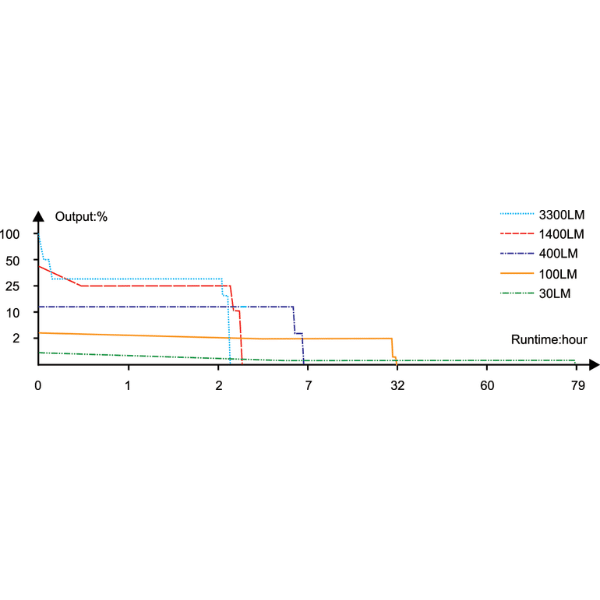

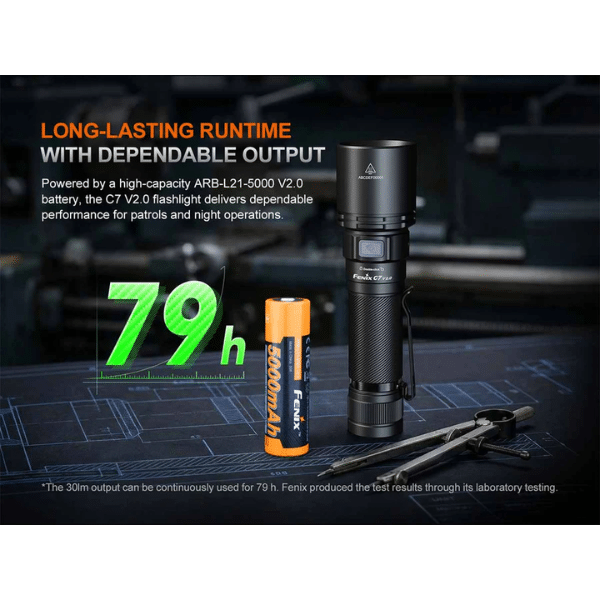

• Max Runtime: 79 hours
• Lighting Modes: Seven lighting modes, including five brightness levels, Strobe, and SOS
• Bulb Type: One Luminus SFT70 Gen2 LED
• Lens Material: Glass
• Colour Temperature: Around 6500K
• Size: Length: 5.93” (150.6mm) Head: 1.57” (40mm) Body: 1.08” (27.5mm)
• Weight: 9.05 oz (256.5g) including battery
• Battery: One included a 21700 rechargeable Li-ion battery

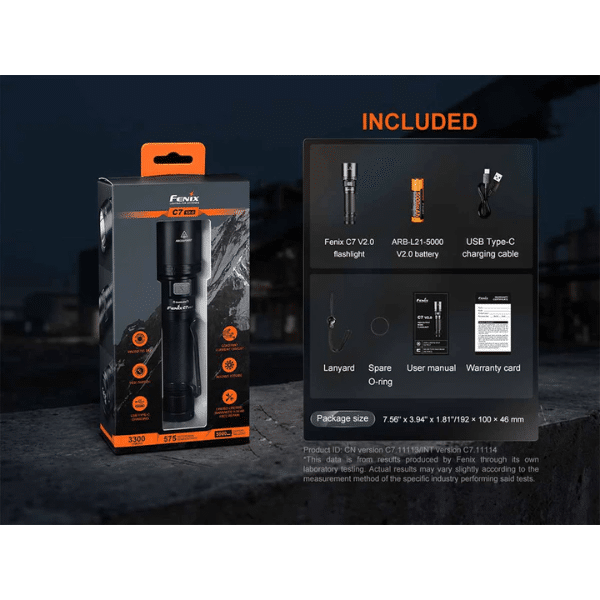

• Included: ARB-L21-5000 V2.0 battery, USB Type-C charging cable, Lanyard, Spare O-ring
• Warranty: Limited Lifetime Guarantee from Fenix Lighting USA

More Information:

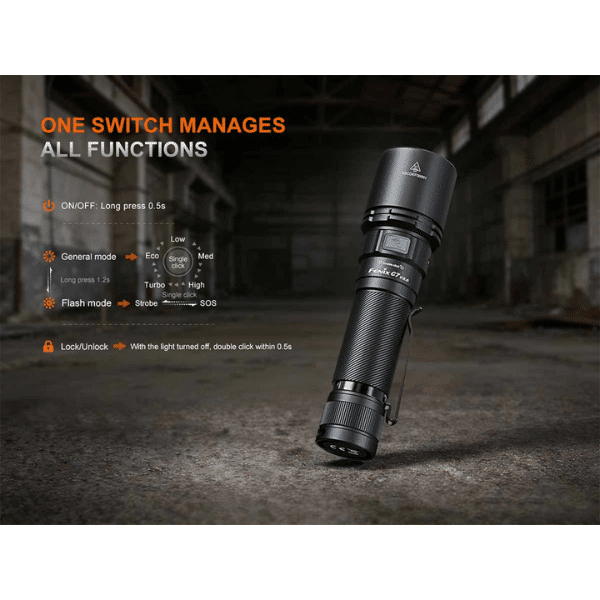

Operating Instructions

On/off

Press and hold the side switch for 0.5 seconds to turn on/off the flashlight.

Mode switching

Press and hold the side switch for 1.2 seconds to enter Strobe. Single-click the side switch to select between Strobe and SOS.

Output selection

With the light turned on, single-click the side switch to cycle through Eco→Low→Med→High→Turbo.

Strobe

With the light turned off, press and hold the side switch for 0.5 seconds to enter Instant Strobe.

With the light turned on, press and hold the side switch for 0.5 seconds to enter Strobe. Press and hold again to exit Strobe or fully press the side switch to turn the light off.

Lock/unlock

• Lock: With the light turned off, double-click the side switch within 0.5 seconds, and the light will blink twice in Low output to indicate the locked status.
• Unlock: With the light locked, double-click the side switch within 0.5 seconds, and the light will activate in Low output to indicate the light is unlocked.

Note: In locked status, any operation other than battery level indication and unlocking will activate two blinks in Low output to indicate the locked status.

Intelligent Memory Circuit

The flashlight automatically memorises the last selected output, but only for outputs of 1000 lumens or below. When turned on again, the last selected output will be recalled.

Note: The flashlight does not memorise Strobe and SOS.

Battery Specifications

*21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardise the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.

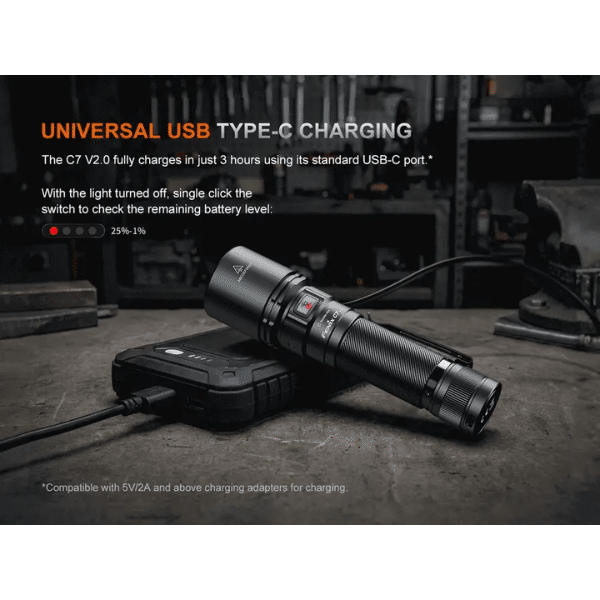

Charging

• Turn off the flashlight and open the anti-dust cover to reveal the USB Type-C charging port, then connect the USB Type-C end of the charging cable to the flashlight.
• The battery level indicator will display red while charging and will turn green when fully charged.
• Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

Note:

1. Recharge a stored flashlight every four months to maintain the optimum performance of the battery.
2. The flashlight can be operated while charging.
3. Recharge a flashlight promptly before the battery level drops too low to maintain the optimum battery lifespan.
4. The normal charging time of the included battery is approximately 3 hours from depleted to fully charged with a 5 V/2 A or above charging adapter.

Power specifications:

• Charging voltage: 5 V
• Maximum charging power: 10 W (5 V / 2 A)
• This flashlight does not support fast charging.
• Only use a certified USB charging adapter that complies with the government safety standards of the country or region where this product is sold.

Battery Level Indication

Each time the flashlight is turned on, the indicator will show the current battery level and will last for 3 seconds.

• Green light on: saturated 100% – 85%
• Green light flashes: sufficient 85% – 50%
• Red light on: poor 50% – 25%
• Red light flashes: critical 25% – 1%

Note: This feature only works with a Fenix ARB-L21 Series rechargeable battery.

Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C/140or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the flashlight will gradually recall the preset output level.

Low-voltage Warning

When the voltage level drops below 3.0 V, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red rapidly, and the main light blinks for 20 seconds to remind users to replace or recharge the battery in a timely manner. Single-click the side switch to stop the main light from blinking and return to Eco output. After the 20-second blinking ends, the flashlight can be used in Eco output for over 30 minutes. Throughout this warning period, the battery level indicator continues to blink red rapidly until the battery runs out.

Note: This feature only works with a Fenix ARB-L21 Series rechargeable battery.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
• Fenix recommends using an excellent-quality battery.
• If the flashlight is not used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage.
• Unscrew the light tail a few turns or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
• Periodic cleaning of the battery contacts improves the flashlight’s performance as dirty contacts may cause the flashlight to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: Poor battery level.
  Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
  B: The contact or contact point of the battery or flashlight is dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
  If the above methods don’t work, please contact your authorised distributor.

Warning

• Do NOT shine this flashlight directly into anyone’s eyes!
• Do NOT place this flashlight within the reach of children!
• Do NOT place the light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
• Do NOT use this flashlight in inappropriate ways, such as holding the unit in your mouth; doing so could cause serious personal injury or death if the flashlight or internal battery fails!
• This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to avoid burns!
• Turn off and lock the flashlight or take out the battery to prevent accidental activation when the flashlight is placed in a closed and flammable environment, such as pockets and backpacks!
• The LED of this flashlight is not replaceable; so the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.
